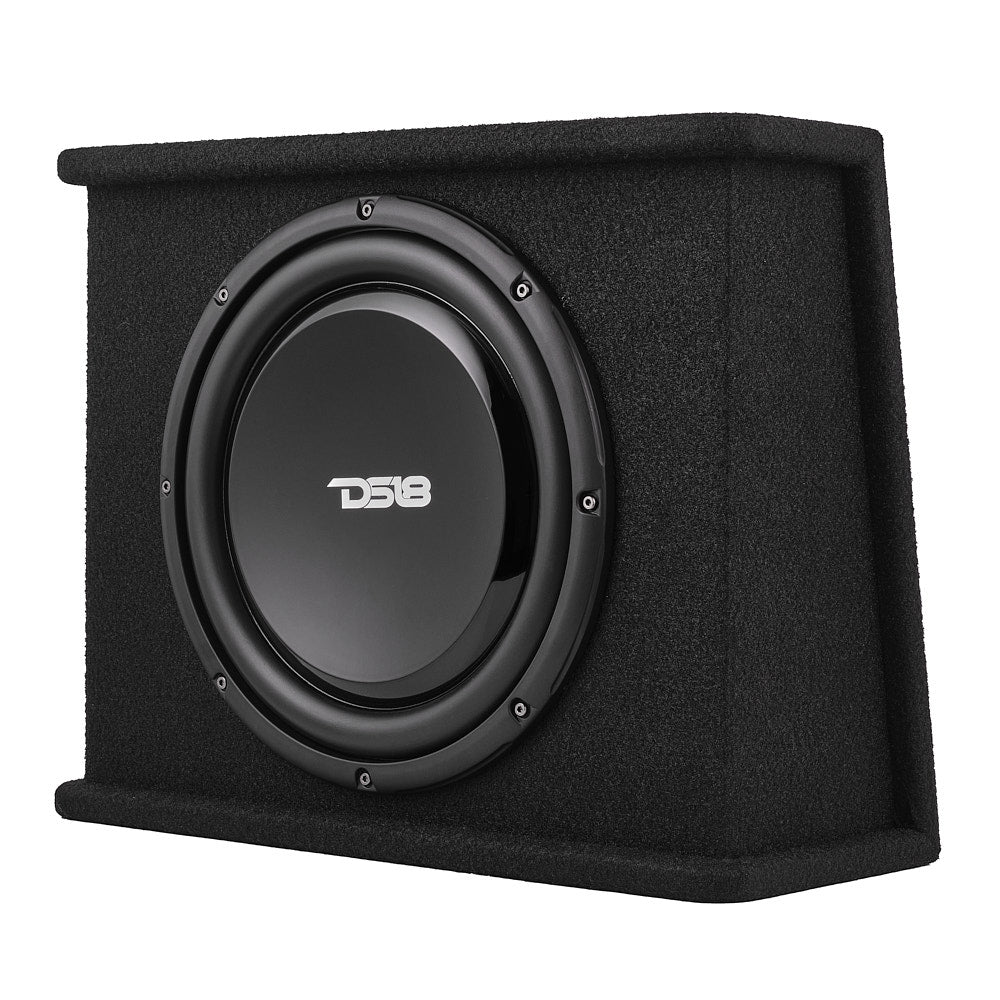

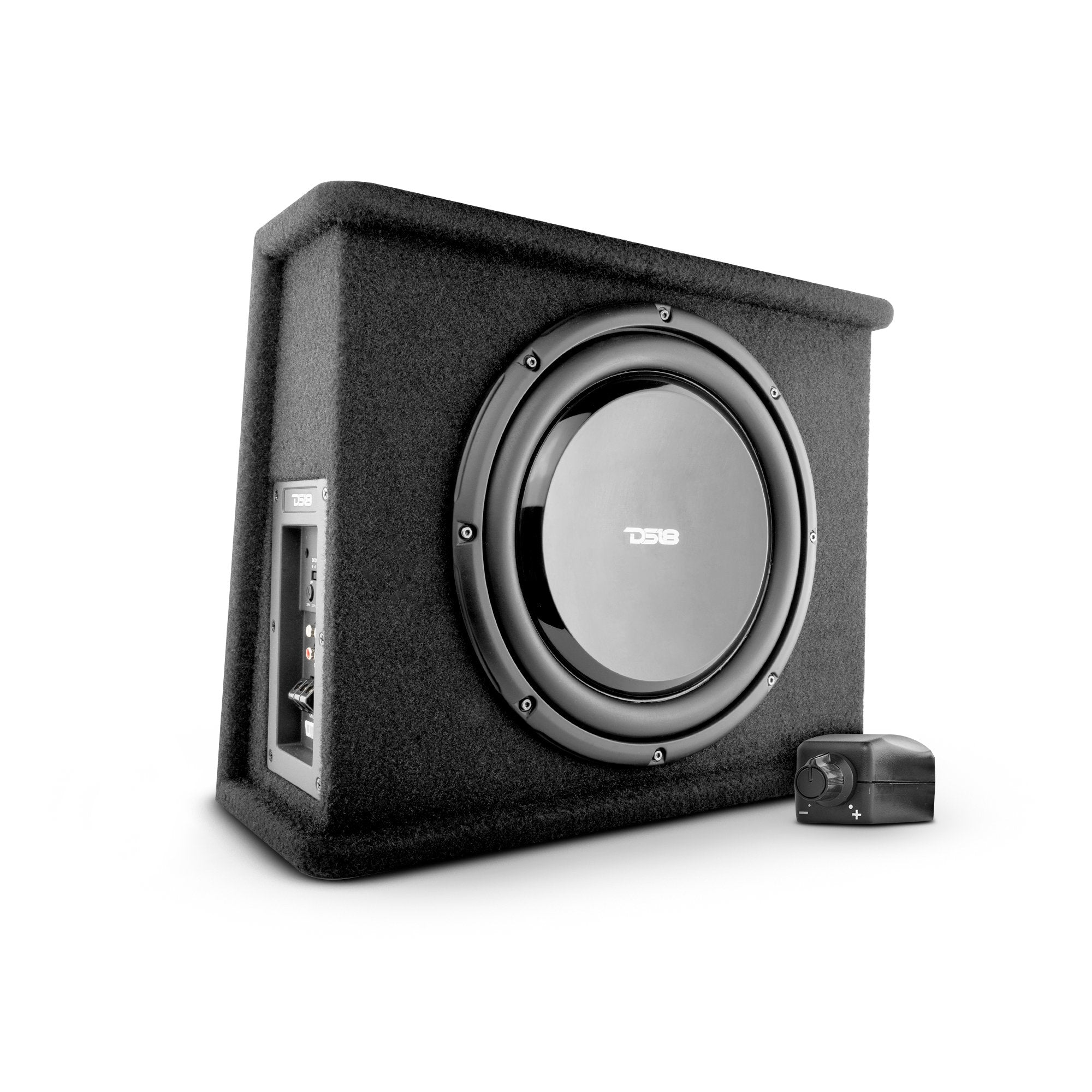

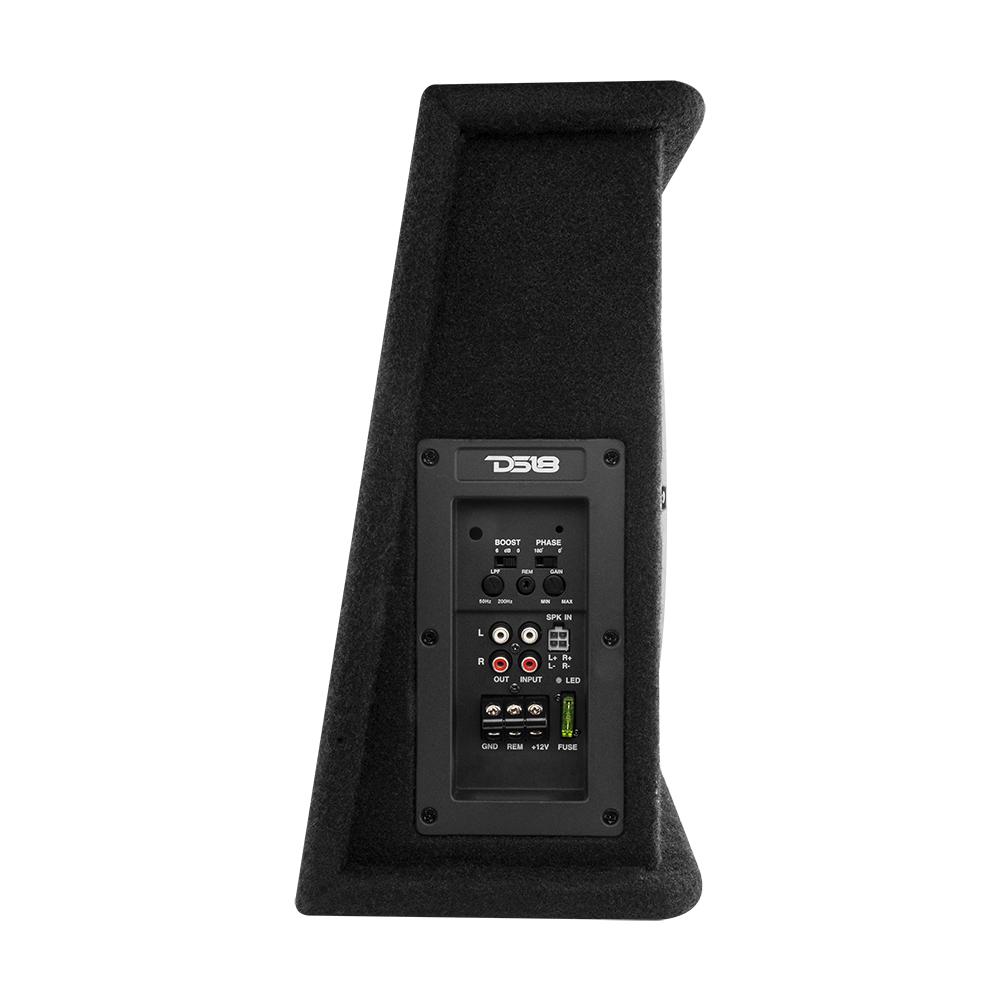

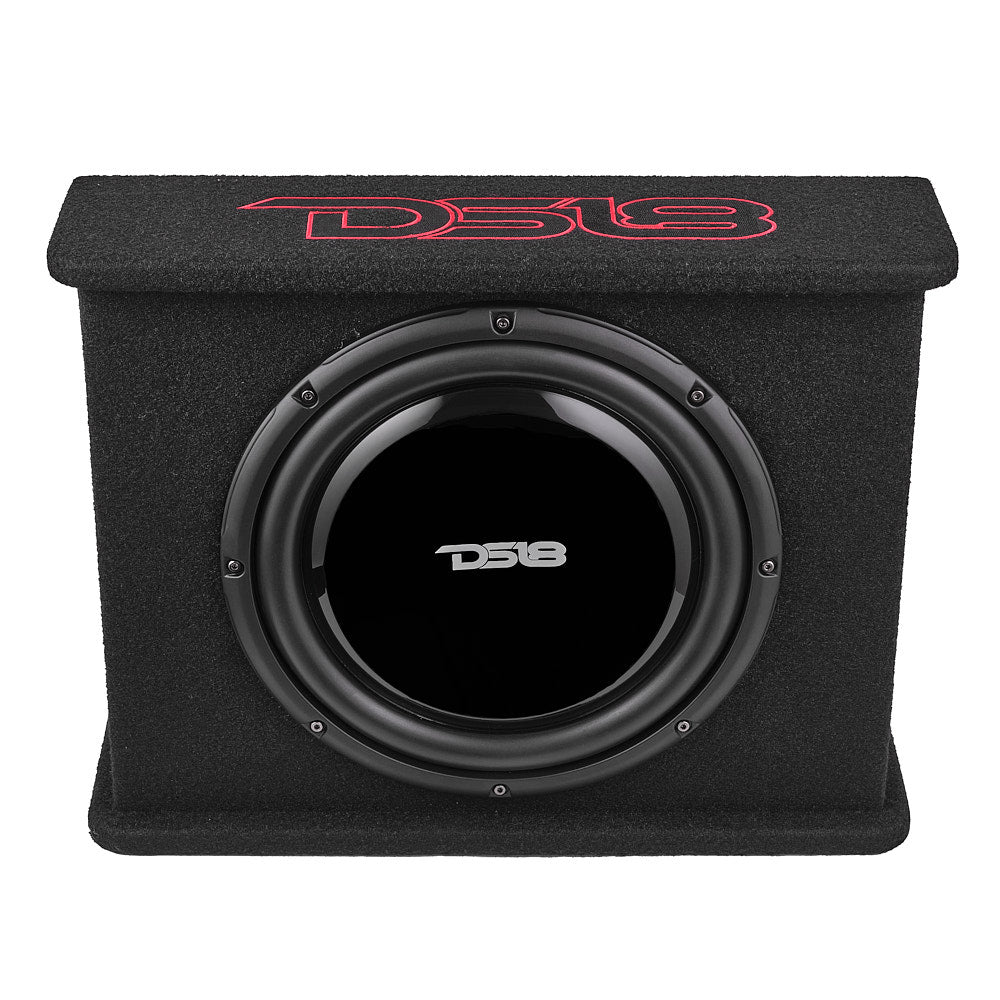

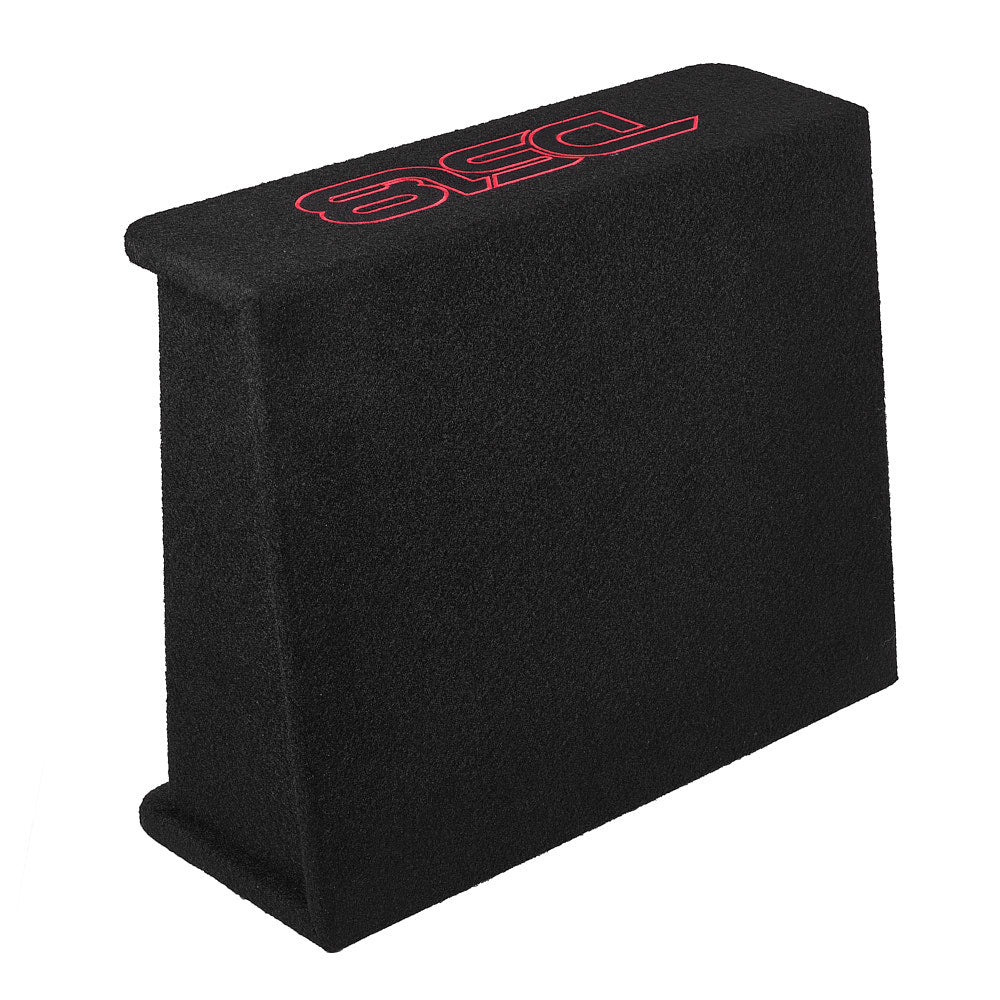

DS18 SB12A 12" Amplified Car Subwoofer Shallow Enclosure 700 Watts
Subwoofers are a must have for any audio system. Some audio enthusiasts don't have a lot of room for big subs, for example, in single cab trucks. Now we have a option for people craving great bass but don't have much space for it.
The SB12A is a slim 12 inch subwoofer in a sealed box that is powered by a powerful, built in 350w RMS amplifier that is sure to get the bass thumping hard in the minimal space that you have available available in your vehicle.
Highlights
- Strong slim 12 inch sub that is sure to bring pounding bass where there is not much space.
- Compact sealed box made of .6 inch MDF with included built in 350w RMS 700w max high power amplifier.
- Easy to hook up and integrate with any system with the use of high level inputs or RCA jacks, whichever is easiest for you!
Technical Details
| BOX SPECIFICATIONS |
|
| Internal Volume |
16L / 0.56ft3 |
| Load Configuration |
Parallel In |
| Box Type |
Sealed Box |
| Box Material |
0.59" MDF |
| Finish Material |
Non-Woven fabric |
| (-3dB) Dropping Point |
45Hz |
| MEASUREMENT |
|
| Height |
14.96" / 380mm |
| Width |
19.3" / 490mm |
| Depth 1 |
4.92" / 125mm |
| Depth 2 |
7.4" / 188mm |
| SPECIFICATIONS |
|
| Speaker Size |
12" / 312mm |
| Total Impedance |
2 ohms |
| RMS Power Handling |
350W |
| MAX Power Handling |
700W |
| Sensitivity (1w/1m) |
87dB |
| Frequency Response |
30-250Hz |
| MOTOR |
|
| Voice Coil Diameter |
1.75" / 44.43mm |
| Voice Coil Former Material |
Aluminum |
| Winding Material |
EISV |
| Cone Material |
IPP |
| Surround Material |
Rubber |
| Basket Material |
SPCC |
| Magnet Material |
Ferrite |
| Magnet Weight |
50 Oz |
| AMPLIFIER |
|
| Amplifier Class |
Digital |
| Amplifier Type |
Monoblock Subwoofer |
| Number of Channels |
1 CH |
| Minimum Impedance |
2 Ohms |
| Signal to Noise Ratio |
75 dB |
| Efficiency @ 4 ohms |
75% |
| Total Harmonic Distortion (T.H.D) |
0.30% |
| Low Level Input Range |
0.1-0.6 V |
| High Level Input Range |
Yes |
| Selectable X-Over |
LPF Fixed |
| X-Over Filter Range |
51 - 200 Hz |
| Bass Boost Range |
0-6 dB |
| Bass Boost Frequency |
50Hz |
| Phase Selector |
0-180° |
| Led Indicator |
Power - Protection |
| Power Input Terminal Size |
8 GA |
| Fuse Size |
30 A |

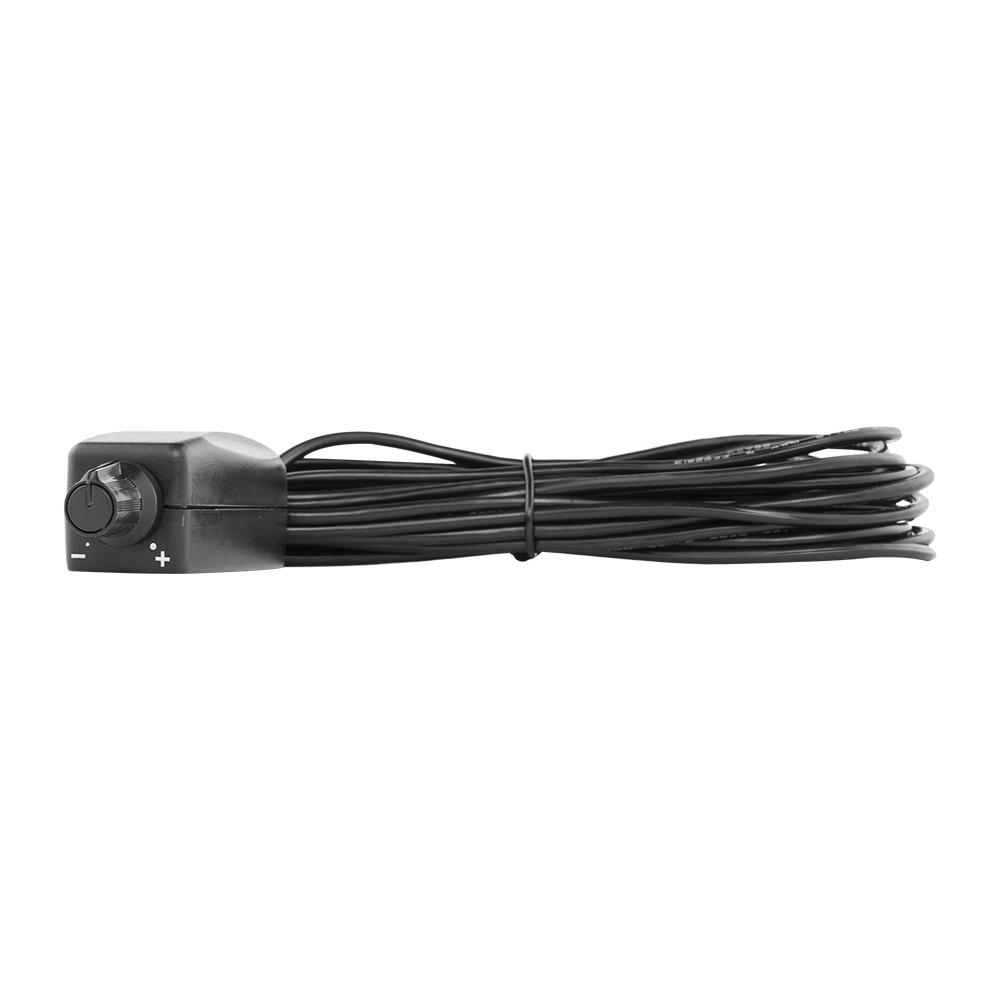

| Remote Level Control |
Yes |
| Thermal Protection |
Yes (75°C / 167°F) |
| Over-Load Protection |
Yes |
| DC Output Protection |
Yes |
| Short Circuit Output Protection |
Yes |
| Voltage Input Protection |
Yes (<8v,>16v) |
