DS18 PRO-TWX4 4.5" Super Bullet Tweeter 560 Watts 1.75" Titanium 4-Ohm Vc
Engineered and Designed in the US, the DS18 PRO Tweeters are the top of the line in the Pro Audio/Voceteo market. These bad boys deliver so much power that you'd think with one tweeter your whole sound system is ready to deploy for a major concert. Simply put, there are no tweeters that can compare to the sophistication, beauty, and precision of these tweeters especially in the Pro Audio/Voceteo World.
Thanks to the demands of our customers, after months of relentless tests and experiments, our team of audio-experts perfected the PRO TWX line. We are ecstatic to share with you the product of hard-work and "non-stop innovating attitude." We are sure that you will love your new PRO Tweeters as much as we do.
Highlights
- Award winning DS18 super tweeter design that has been seen in countless shows and competitions in some of the loudest vehicles in the world.
- High powered super tweeter made to emphasize extreme high notes with amazing precision and clarity.
- Easily disassembled so you can change your voice coil on the go in minutes.
- With a massive 1.75 inch 4 ohms voice coil, these monster tweeters have a Peak wattage of 520w for insane highs at extreme volumes.





Technical Details
| SPECIFICATIONS |
|
|
| Nominal Diameter |
4.53” / 115mm |
| Nominal Impedance |
4 Ohms |
|
| AES Power Handling |
140W |
|
| Program Power Handling |
280W |
|
| Peak Power Handling |
560W |
|
| Sensitivity (1w/1m) |
108 dB |
|
| Frequency Response |
1.5KHz-20KHz |
| Recommended Hi Pass Crossover |
2KHz |
|
| Pair or Single |
Single |
|
| MOTOR |
|
|
| Voice Coil Diameter |
1.75” / 44.4mm |
| Voice Coil Former Material |
Kapton |
|
| Winding Material |
CCAW |
|
| Diaphragm Material |
Titanium |
|
| Magnet Material |
Ferrite |
|
| Magnet Weight |
16 oz |
|
| Body Material |
Aluminum |
|
| Bullet Material |
Aluminum |
|

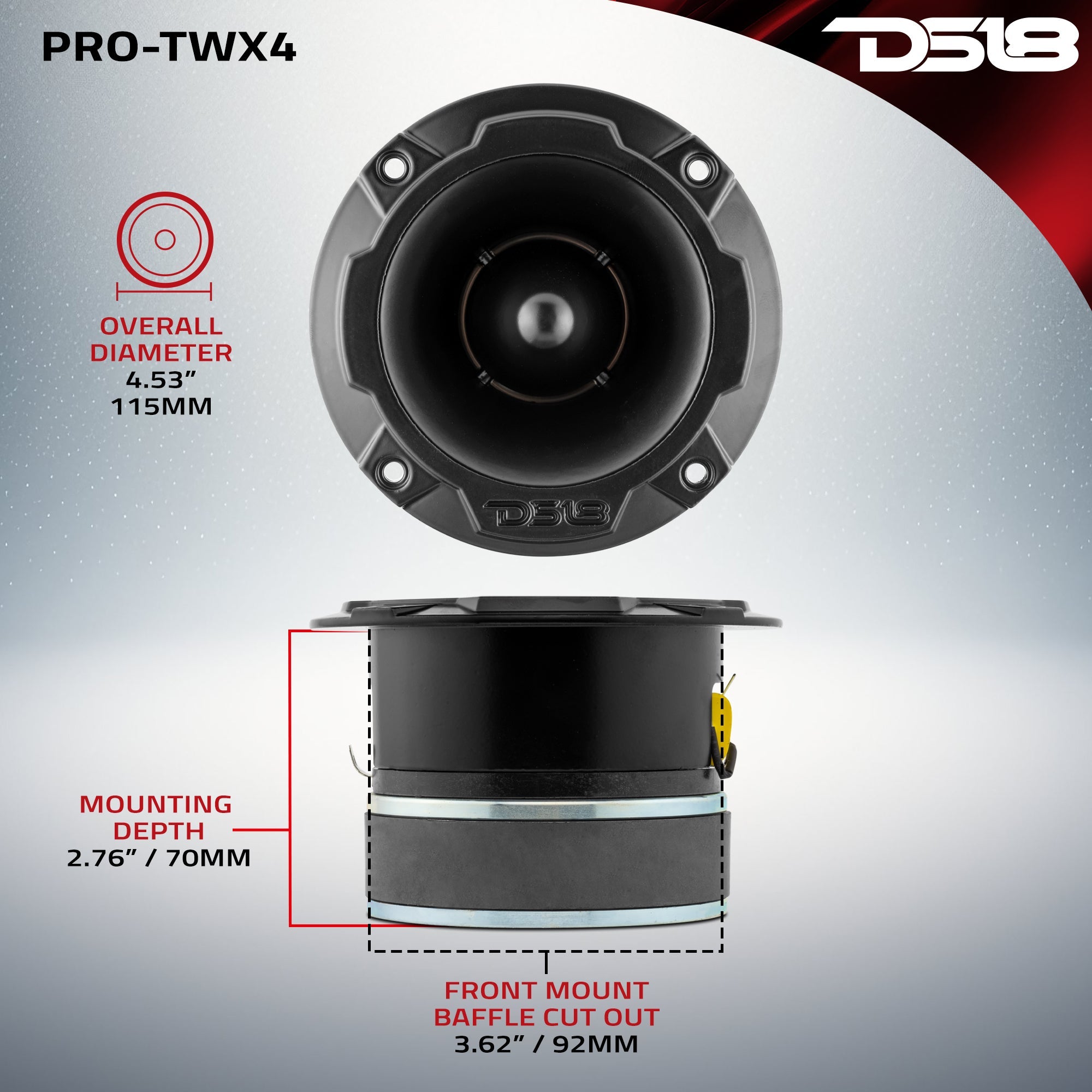

| MEASUREMENTS |
|
|
| Overall Diameter |
4.53” / 115mm |
| Overall Depth |
3.01“ / 76.5mm |
| Front Mount Baffle Cutout |
3.62” / 92mm |
| Mounting Depth |
2.76” / 70mm |
| Motor Diameter |
3.56” / 90mm |
