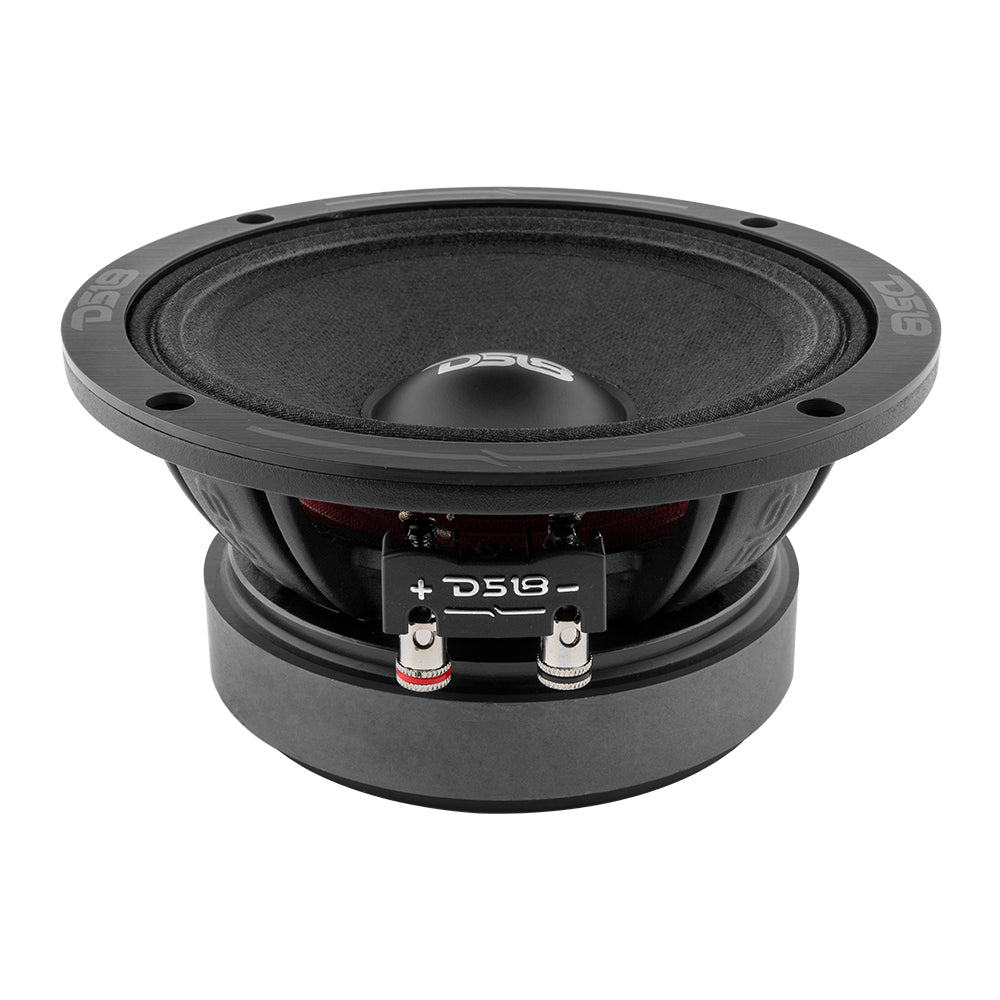

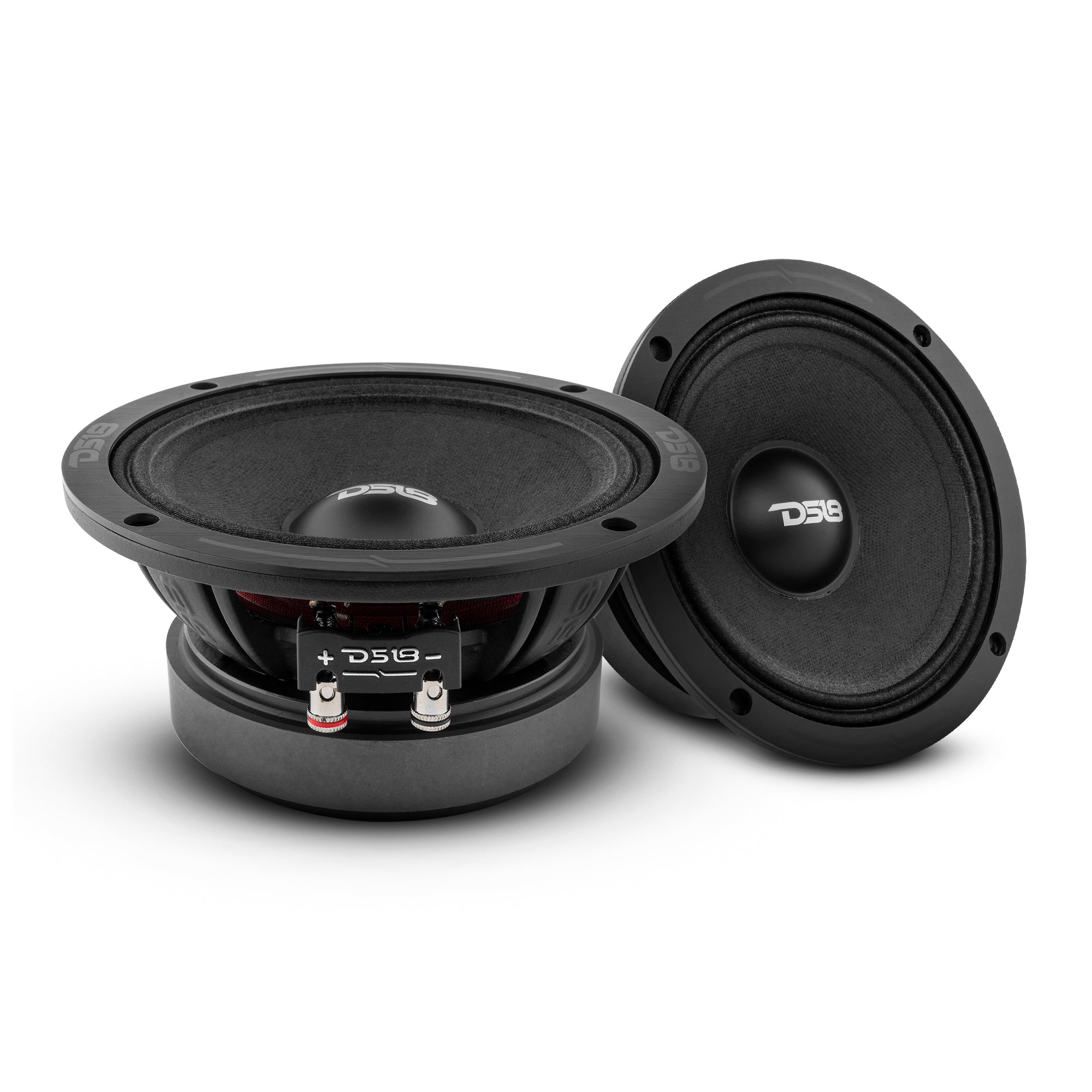

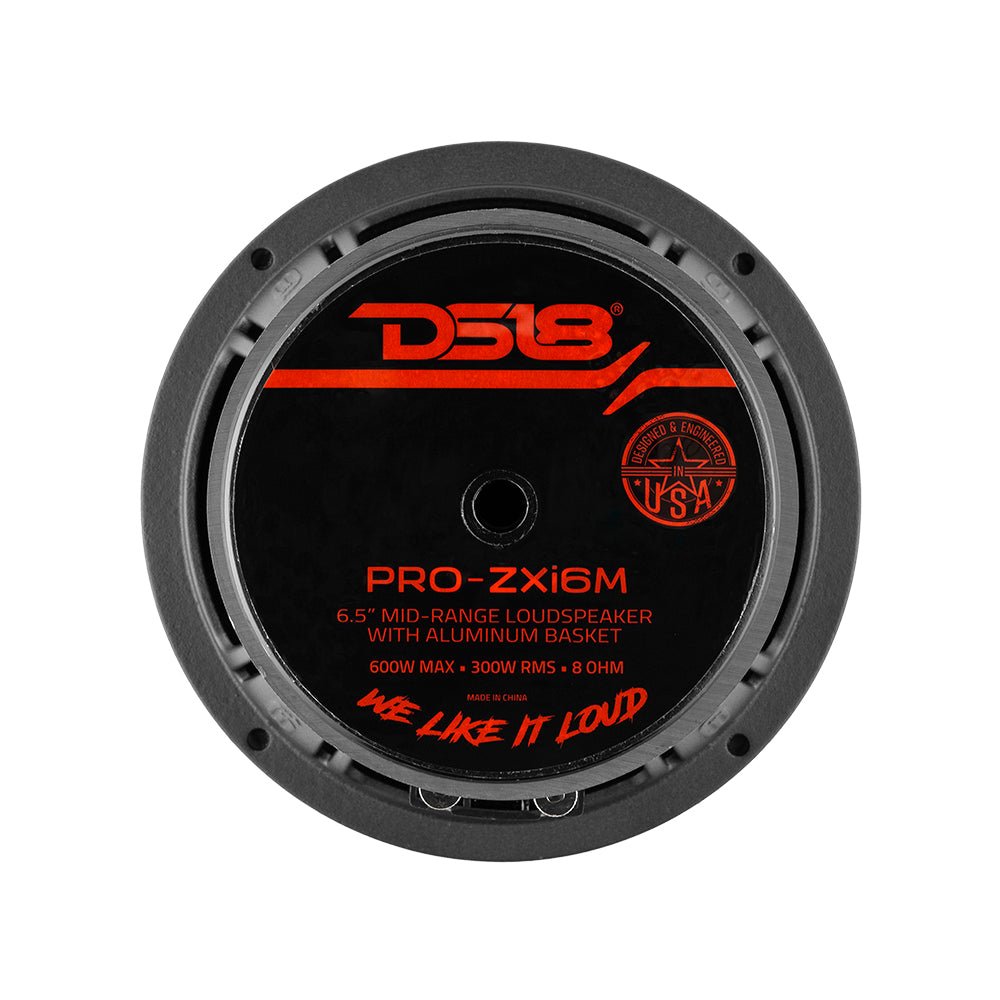

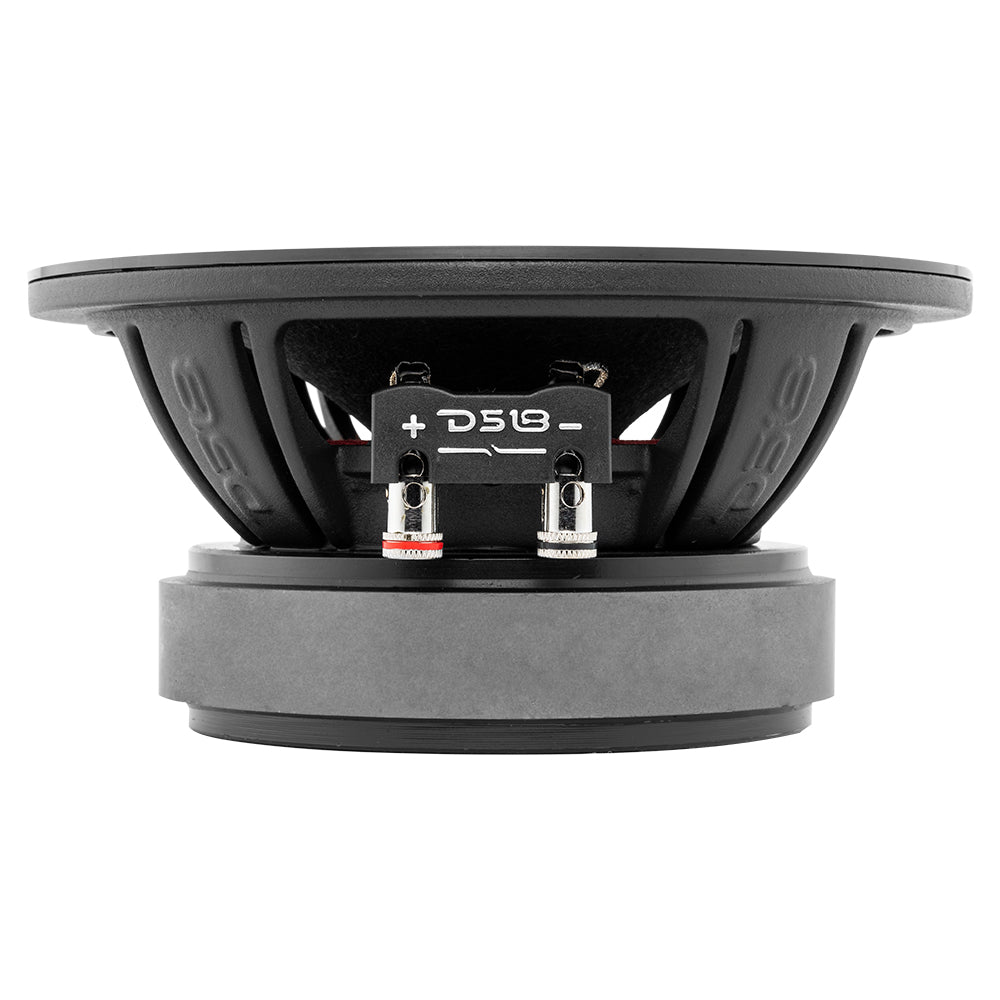

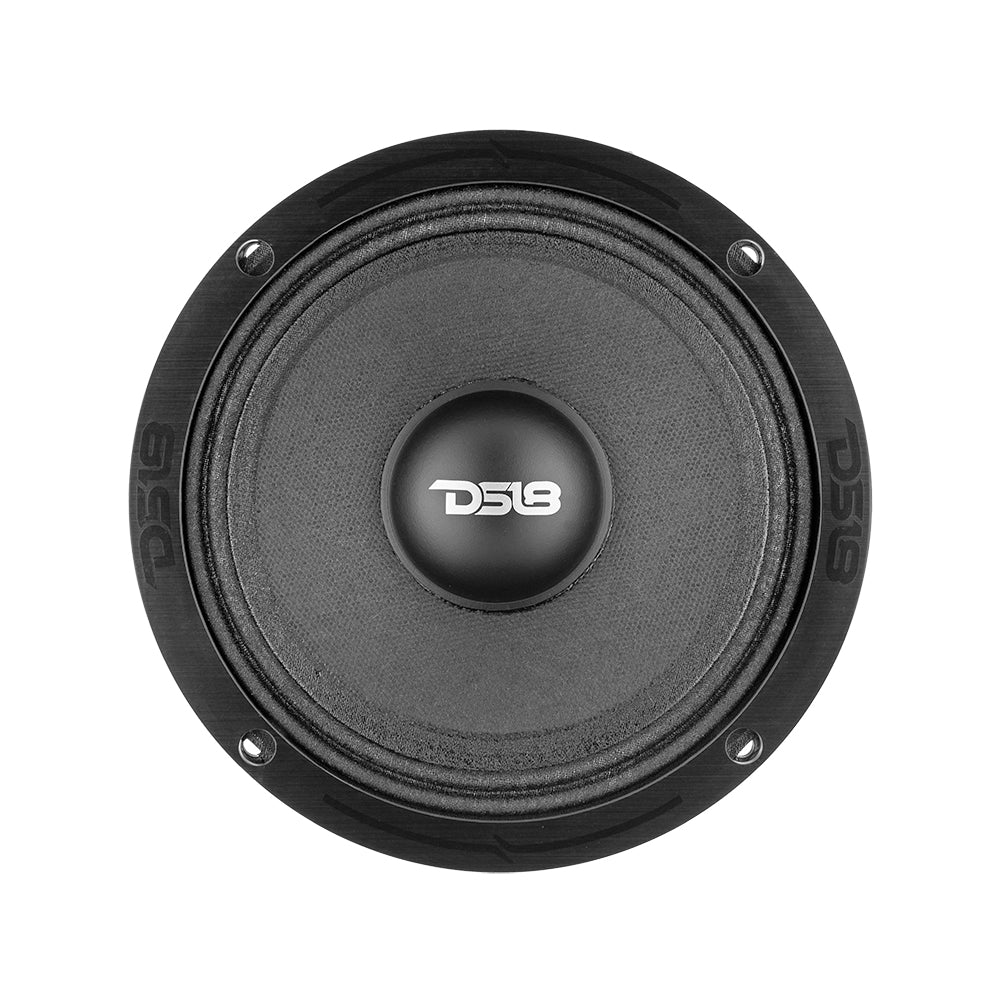

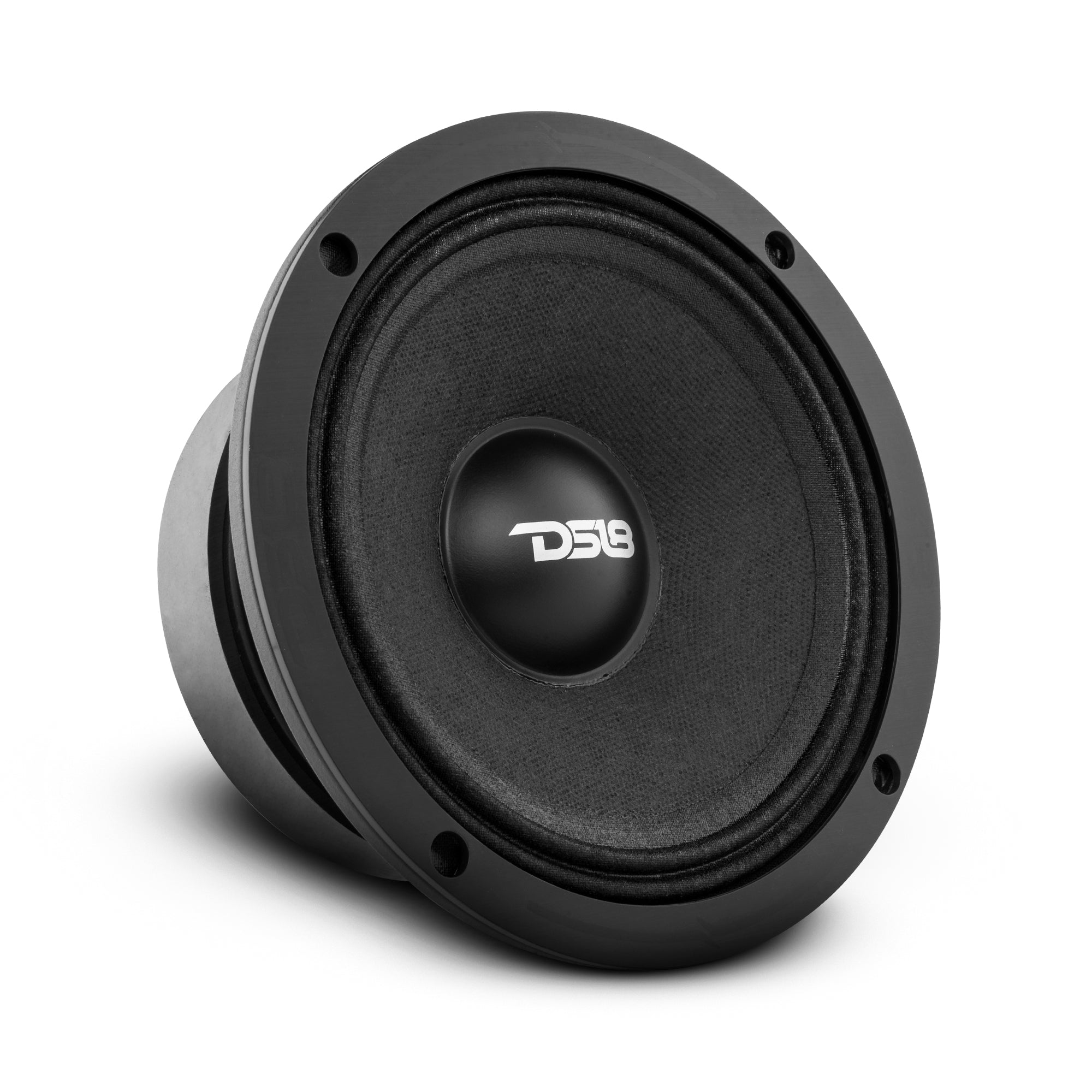

DS18 PRO-ZXI6M 6.5" Mid-Range Pro Audio Loudspeaker 600 Watts 8-Ohm
The ZXi series brings Pro Audio to a bright new level of elegance, clarity, and loudness.
These speakers were designed specifically for the audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently allowing it to play up to extreme volumes with authority for extended periods of time.
The PRO-ZXi6M has a beautiful gloss black basket face with strong black on black bullet dust cap.
This 8-ohm 6.5 inch speaker handles an enormous 300 watts RMS and 600 watts MAX power ensuring screaming loud mid and high range frequencies be acute and clear.
Key Features
- 6.5 inch black on black Pro-Audio Loudspeaker.
- Max Power Handling: 600 watts
- RMS Power Handling: 300 watts
- Frequency Response: 100Hz-8KHz
- Voice Coil Diameter: 1.5"
- Voice Coil Material: CCAW
- Impedance: 8-Ohm
- Sensitivity: 97dB
- Magnet Weight: 30 + 3 Oz
- Magnet Material: Ferrite + Neodymium
- Mounting Depth: 2.83"
Great for:
- Car Audio
- Pro Audio
- Motorcycles
- Home Studios
- Hi-Fi Installation
- Stunt Walls
- DIY Projects
Technical Details
PRO- ZXI6M Product Manual
| SPECIFICATIONS |
|
| Nominal Diameter |
6.5" / 165mm |
| Nominal Impedance |
8 ohm |
| RMS Power Handling |
300W |
| MAX Power Handling |
600W |
| Sensitivity (1w/1m) |
97dB |
| Frequency Response |
100Hz - 8KHz |
| Recommended HI Pass Crossover |
160Hz |
| Pair or single |
Single |
| MOTOR |
|
| Voice Coil Diameter |
1.5" / 38.6mm |
| Voice Coil Former Material |
Glass fiber |
| Winding Material |
CCAW |
| Cone Material |
Paper |
| Dust Cap Material |
Paper |
| Bullet Material |
N/A |
| Surround Material |
Cloth |
| Basket Material |
Aluminum |
| Basket Color |
Black Sandblasted |
| Magnet Material |
Ferrite + Neodymium |
| Magnet Weight |
30 + 3 Oz |
| Displacement Volume |
0.36L / 0.012ft3 |
| MEASUREMENT |
|
| Overall Diameter |
6.5" / 166mm |
| Overall Depth |
3.16" / 80.5mm |
| Front Mount Baffle Cutout |
5.78" / 147mm |
| Mounting Depth |
2.83" / 72mm |
| Motor Diameter |
4.72" / 120mm |
