DS18 ZXI-654 Glass Fiber Cone 6.5" 2-Way Coaxial Car Speaker 240 Watts 4-Ohm

DS18's ZXI line is both highly innovative and intuitive making it a very versatile audio line that will bring you loud and clear music on demand. This 2-way 6.5" takes 80w RMS and 240w Max and with a 89 dB sensitivity rating, you don't need a lot of power to bring these very loud speakers to extremely high volumes. These speakers are an amazing choice for your average every day to extreme audiophile!

Highlights

• Highly durable and extremely loud design built for the average to extreme audio systems.
• Glass fiber cone helps give higher sensitivity and produce overall more sound when on lower power.
• 2 - way design will bring a full range of frequencies to your ears and with great sound quality.

Technical Details

Download ZXI-654 Product Manual

SPECIFICATIONS
Nominal Diameter	6.5”
Nominal Impedance	4 ohms
RMS Power Handling	80 Watts
MAX Power Handling	240 Watts
Sensitivity (1w/1m)	89dB
Frequency Response	40Hz - 20KHz
Recommended HI Pass Crossover	60Hz
Speaker Type	2-Way
MOTOR
Voice Coil Diameter	1” / 25.5mm
Voice Coil Former Material	KSV
Winding Material	EISV
Cone Material	Glass fiber
Surround Material	Rubber
Basket Material	Steel
Magnet Material	Barium Ferrite
Magnet Weight	14.46 oz / 410g
TWEETER
Nominal Diameter	1" / 25.4mm
Voice Coil Diameter	0.8" / o20.4mm
Voice Coil Former Material	KSV
Winding Material	EISVM
Diaphragm Material	PEI
Magnet Material	Neodymium
Magnet Weight	0.3 oz / 8.5g
Equivalent Volume	10.84L
Excursion (one way)	2.7mm
Free Air Resonance	64Hz
Mechanical Factor	9.44
Electrical Factor	0.79
Total Factor	0.73
Mechanical Mass	13.72g
Mechanical Compliance	444mm/N
BL Factor	5.1
Voice Coil Inductance	228mH
Cone Area	131cm2
DC Resistance	3.5 ohm
Mechanical Mass w/o air	12g

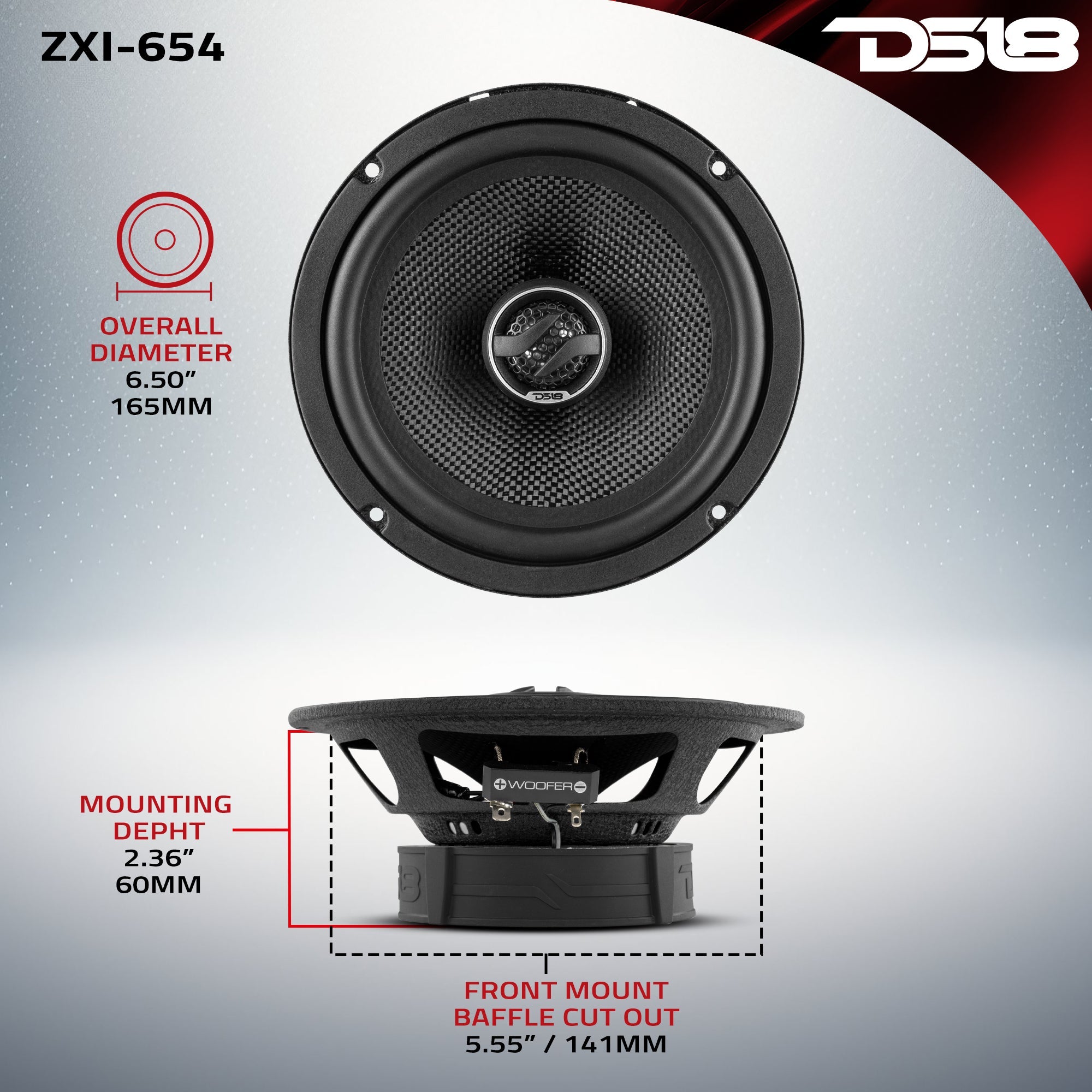

MEASUREMENTS
Overall Diameter	6.50” / 165mm
Overall Depth	2.83” / 72mm
Front Mount Baffle Cutout	5.55” / 141mm
Mounting Depth	2.36” / 60mm
Motor Diameter	3.70” / 94mm
