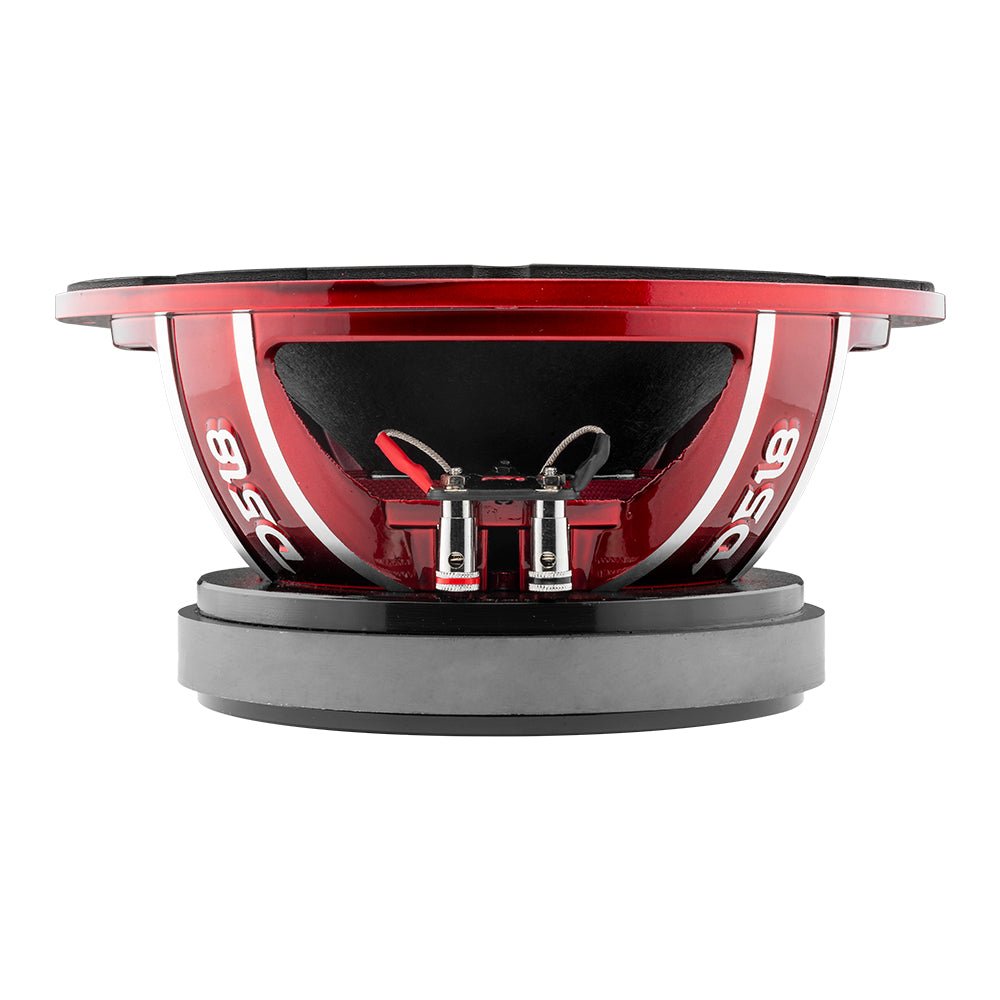

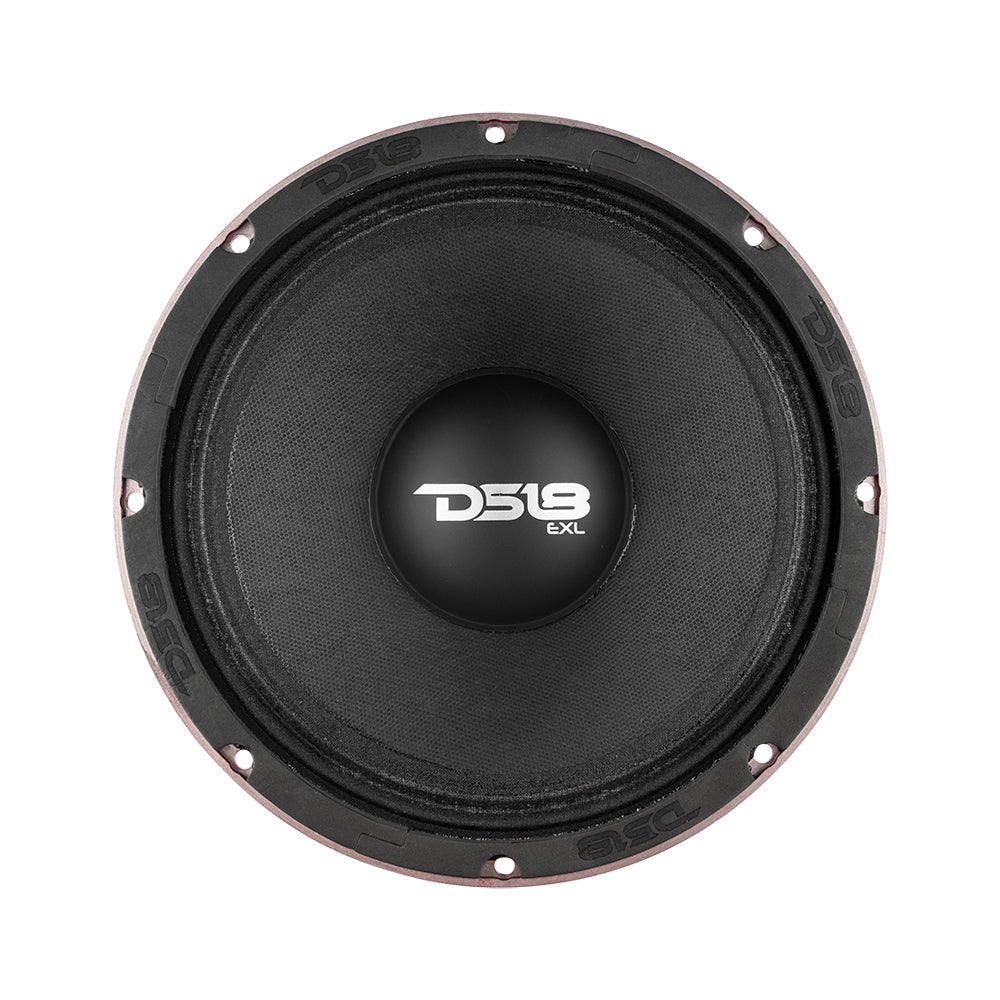

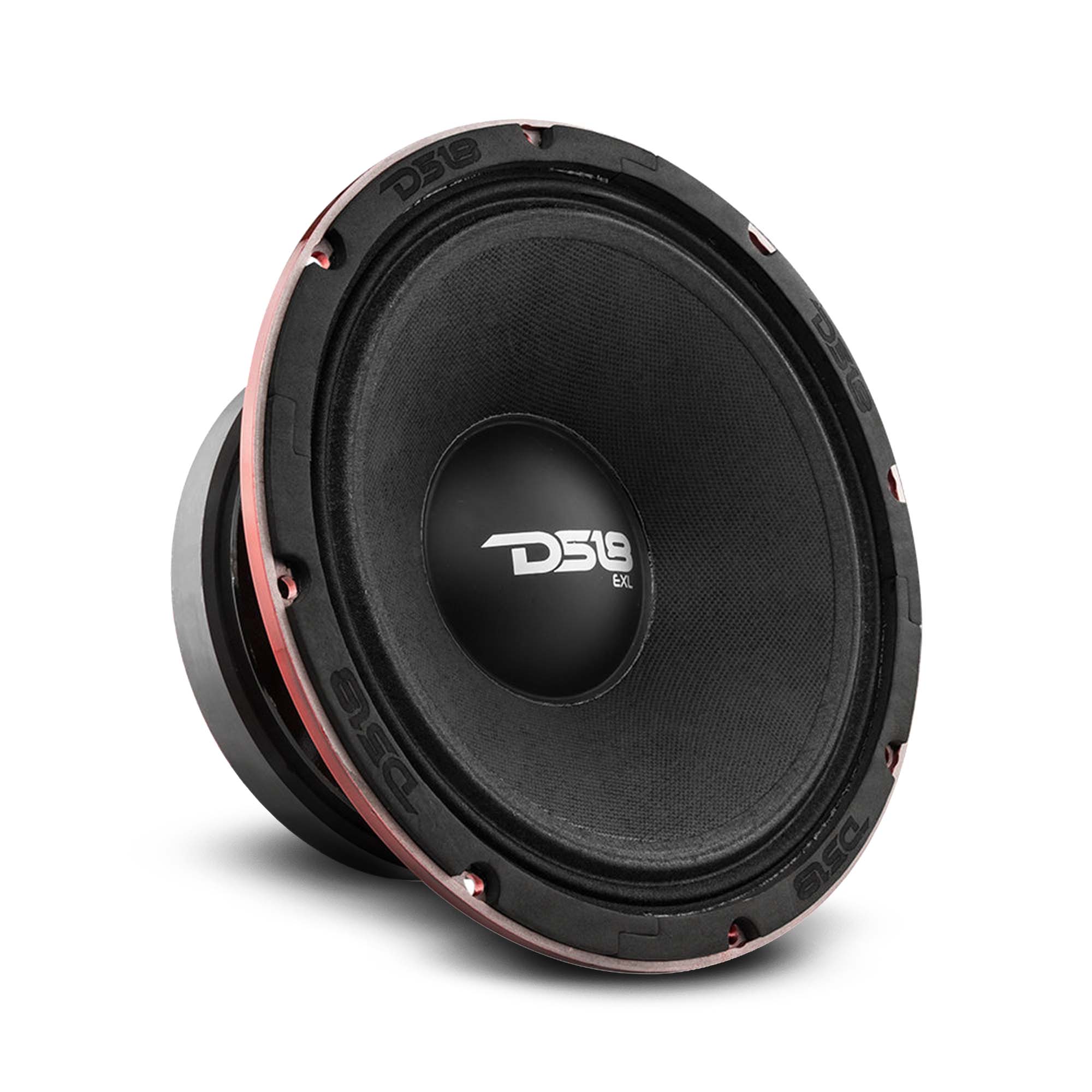

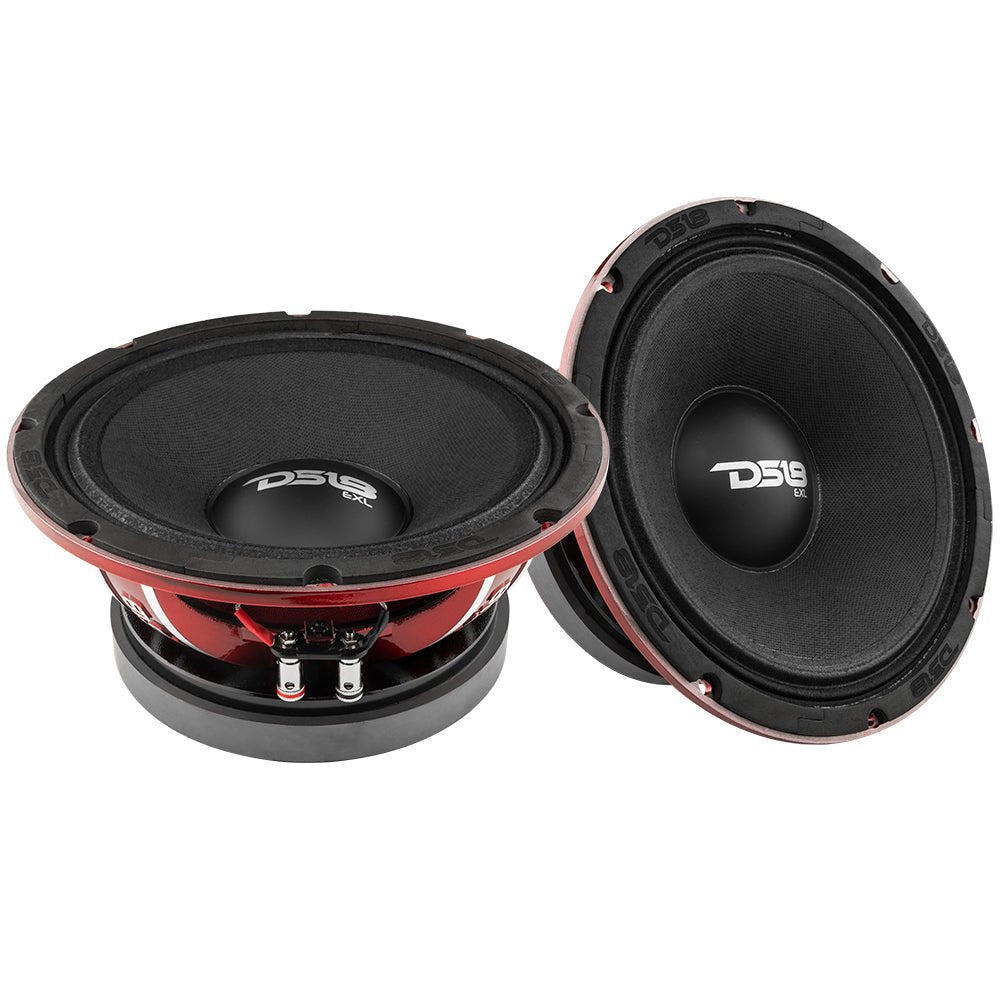

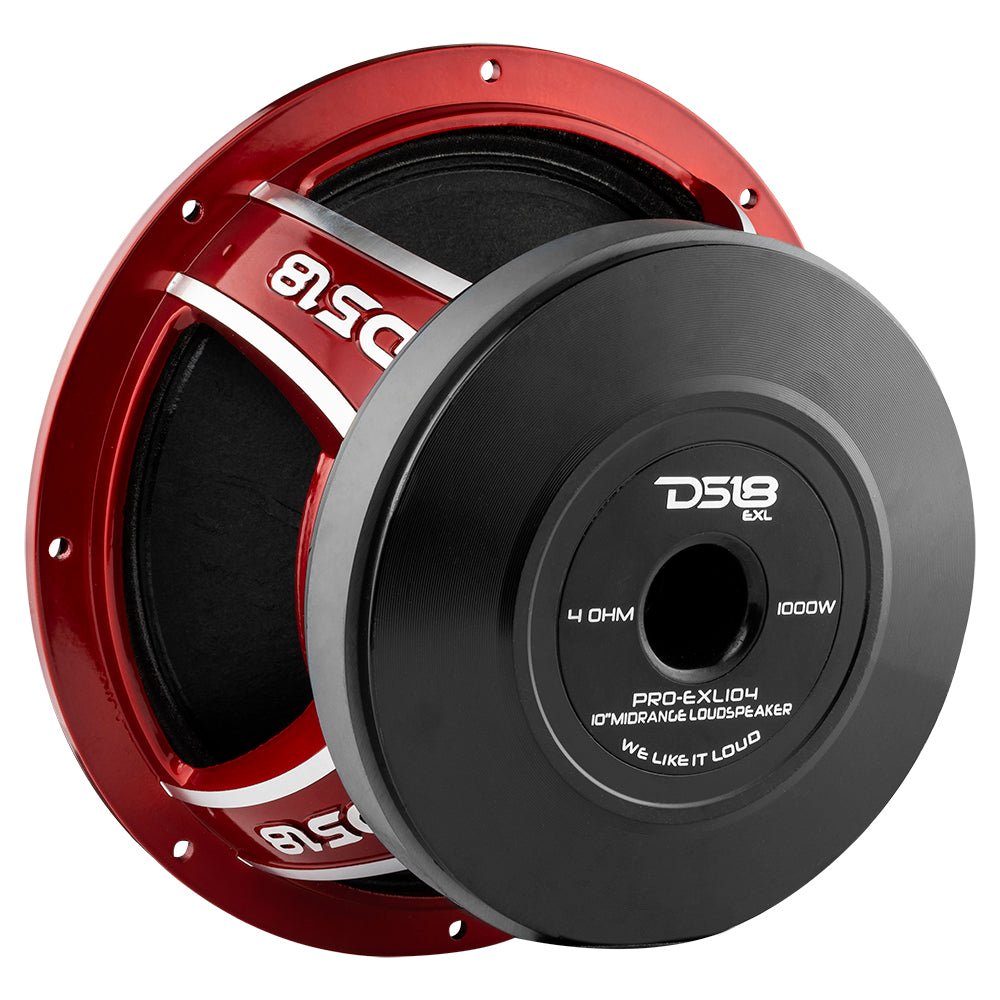

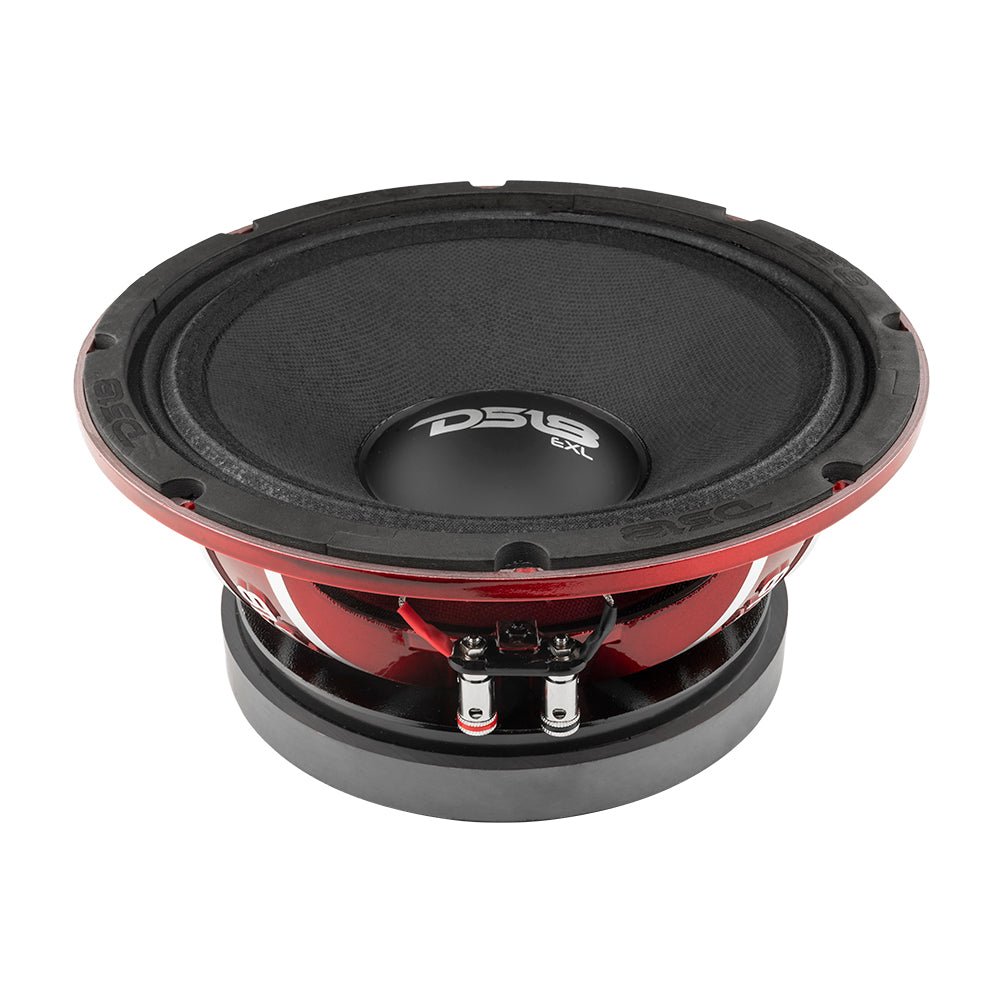

DS18 PRO-EXL104 10" Mid-Range Loudspeaker 1200 Watts 4-Ohm
The people who live and breathe car audio demanded a higher-performing, extremely effective, and dynamic product series. After several months, and money allocated to R&D, DS18 is proud to launch the PRO-EXL Extremely Loud midrange series. They are the epitome of competition-quality midranges. Red aluminum baskets, cloth-edges, non-pressed paper cone, and the option for 8 ohm or 4 ohm impedance; these are only the basic components, the rest is pure DS18 technology.
Highlights
- Flagship DS18 series producing more midrange, more mid-bass, and more vocals for the serious pro audio enthusiasts.
- Oversized DS18 tooled basket in Brilliant red and brushed aluminum logos.
- Large push style connections for large wire and maximum power flow from your amp.
Technical Details
| Model: |
PRO-EXL104 |
| Type: |
Midrange Loudspeaker |
| Size: |
10" |
| RMS Power: |
600W |
| MAX Power: |
1200W |
| Frequency Response: |
85Hz - 12KHz |
| Impedance: |
4 Ohms |
| Sensitivity: |
96dB |
| Materials |
|
| Surround: |
Cloth Edge |
| Frame: |
Aluminum Basket |
| Cone: |
Non-Pressed Paper Cone |
| Magnet: |
Ferrite |
| Voice Coil Wire: |
CCAW |
| Diameters |
|
| Voice Coil Size: |
3" |
| Magnet Size: |
80 oz |
| Mounting Depth: |
4.68" (119mm) |
| Cut-Out Dimension: |
9.21" (234mm) |
