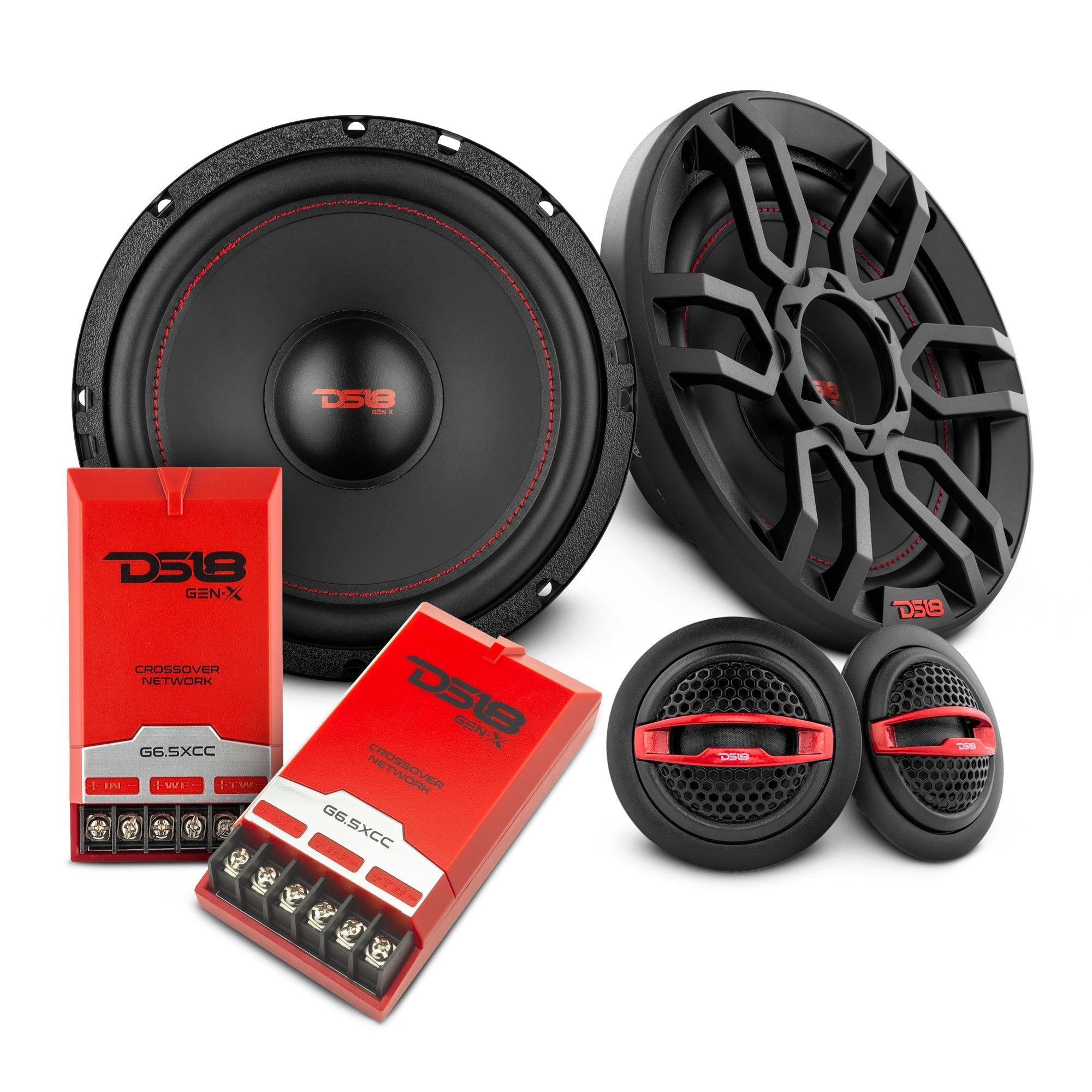

DS18 G6.5XC GEN-X 6.5" 2-Way Component Set Speaker System
150 Watts 4-Ohm
The GEN-X Coaxial Series is back!
The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in an extremely durable steel basket protected by a (PC-ABS) Grill for a speaker that will outlast any vehicle its installed in.
The G6.5Xi was made for amplifiers, but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.
The 2-way design on these speakers bring a full range of frequencies with great response without the need for a large power requirement.
The extremely loud design of the component speaker set with included tweeter and passive crossover will bring a full range of frequencies all listeners are sure to notice. The GEN-X series is one of the best choices among casual everyday listeners and the most enthusiastic of audiophiles
These speakers get loud extremely easily with a MAX Power Handling of 150W and RMS Power Handling of 50W.
Order the G6.5Xi for your system to expand your soundstage today!
Highlights
- 2-Way Design implemented for full range quality on every listen
- Rubber surrounds with treated paper cones for great volume and sensitivity to power ratio

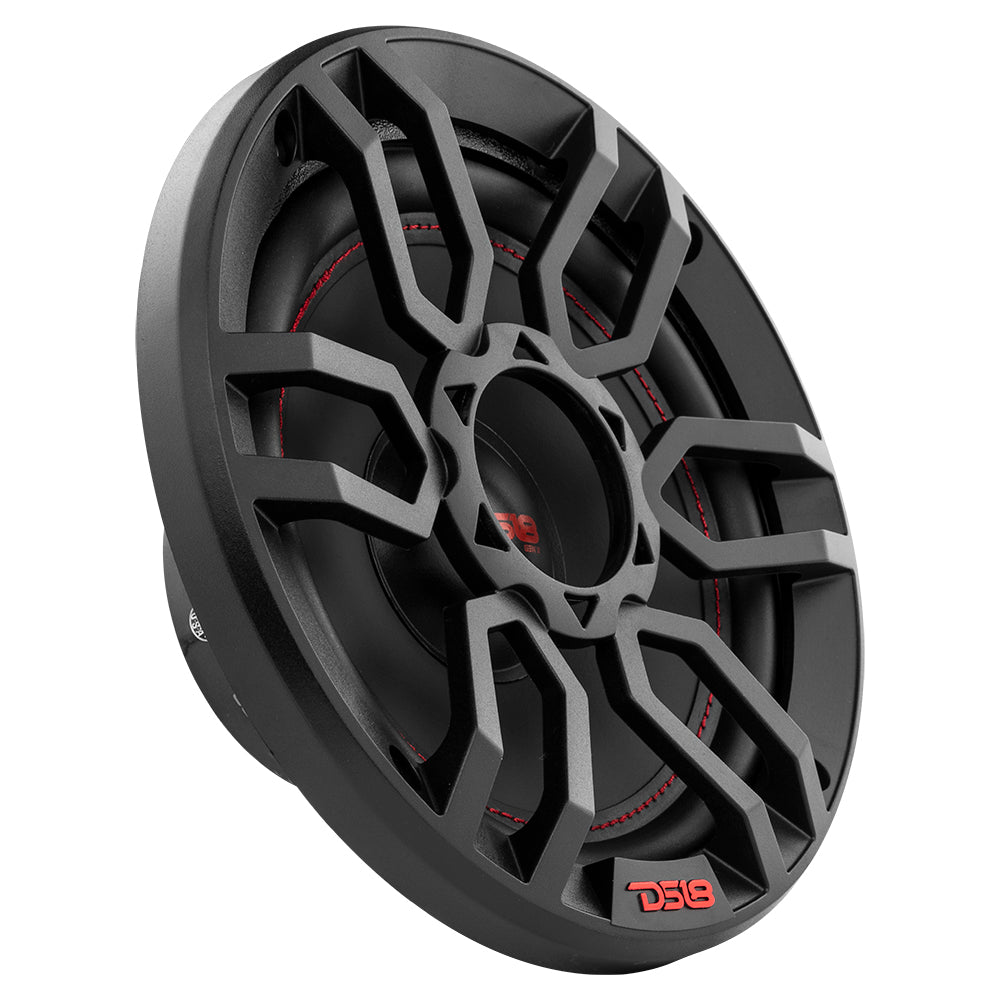

- Included Grills to protect your speakers as well as great looks to blend in to any vehicle
- 2 Speakers included
- Passive Crossover Included
- Tweeter Included
Great For
- Home studios
- Bookshelf
- Satellite
- Surround Sound Speaker
- Hi-Fi installation
- Car audio
- DIY Projects
Technical Details
| GENERAL SPECIFICATIONS |
|
| Nominal Diameter |
6.5" / 165mm |
| Nominal Impedance |
4 Ohms |
| RMS Power Handling |
50W |
| MAX Power Handling |
150W |
| Sensitivity (1w/1m) |
86dB |
| Frequency Response |
35Hz-20KHz |
| Recommended HI Pass Crossover |
60Hz |
| Number of ways |
2 |
| Pair or Single |
Pair |
| Grill Included |
Yes |

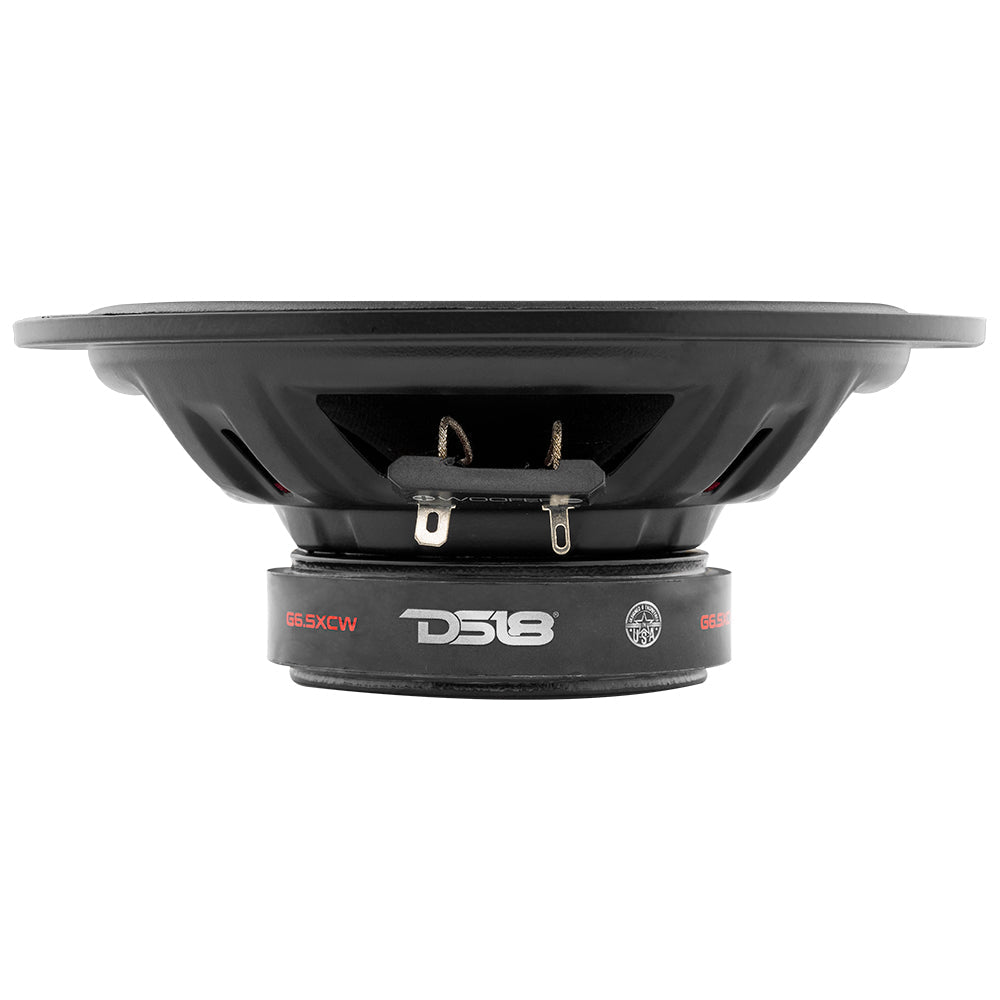

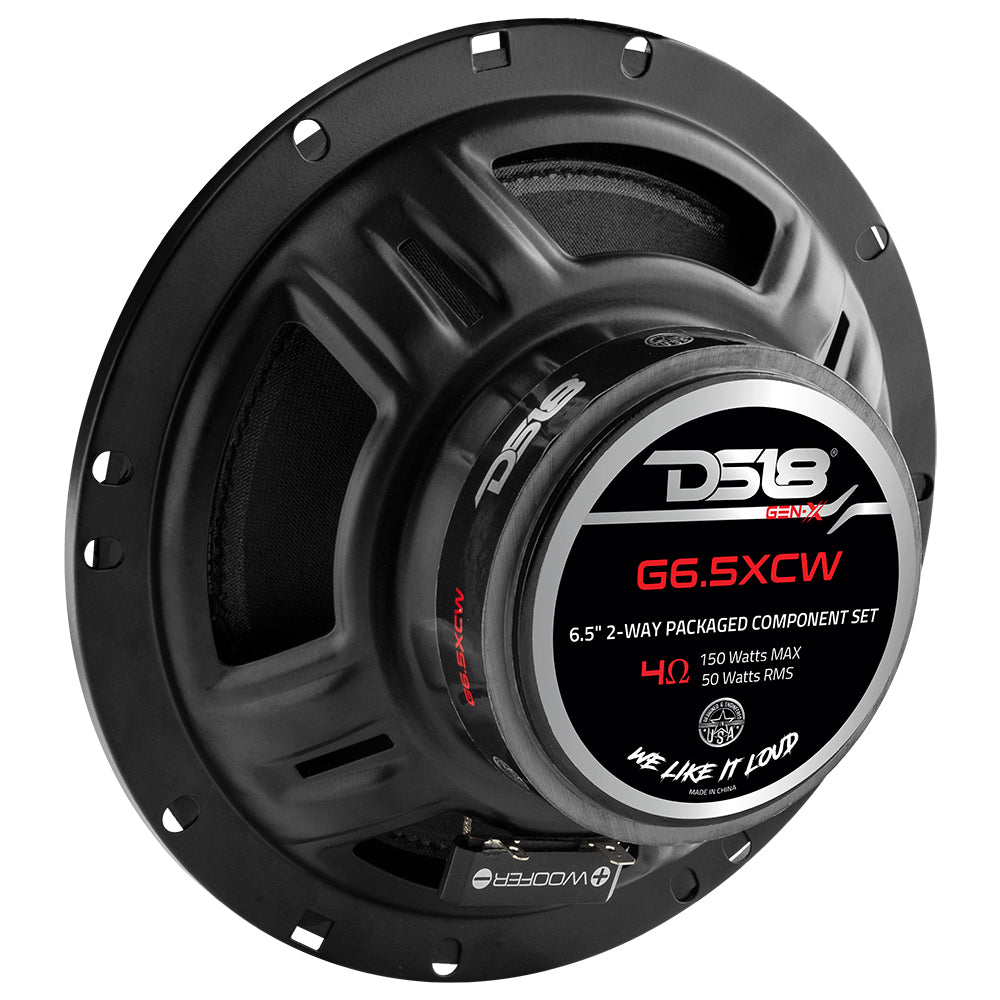

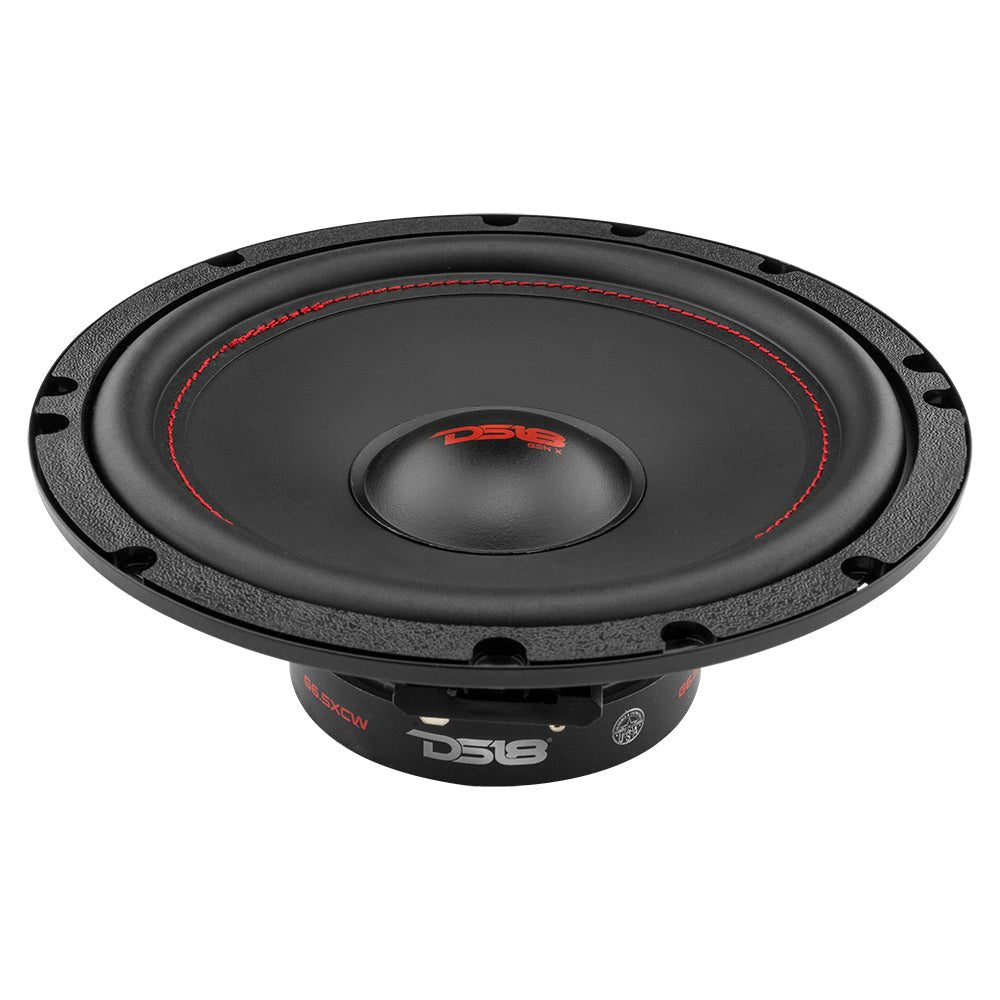

| WOOFER SPECIFICATIONS |
|
| Voice Coil Diameter |
1" / 25.5mm |
| Voice Coil Former Material |
ASV |
| Winding Material |
EISV |
| Cone Material |
Paper |
| Surround Material |
Rubber |
| Basket Material |
Steel |
| Basket Color/Finish |
Black Matte |
| Magnet Material |
Barium Ferrite |
| Magnet Weight |
9.87oz / 280g |
| WOOFER MEASUREMENT |
|
| Overall Diameter |
6.5" / 165.5mm |
| Overall Depth |
2.52" / 64mm |
| Overall Diameter (With Grill) |
7" / 179mm |
| Overall Depth (With Grill) |
3" / 76mm |
| Front Mount Baffle Cutout |
5.6" / 142mm |
| Mounting Depth |
2.24" / 57mm |
| Motor Diameter |
3.15" / 80mm |

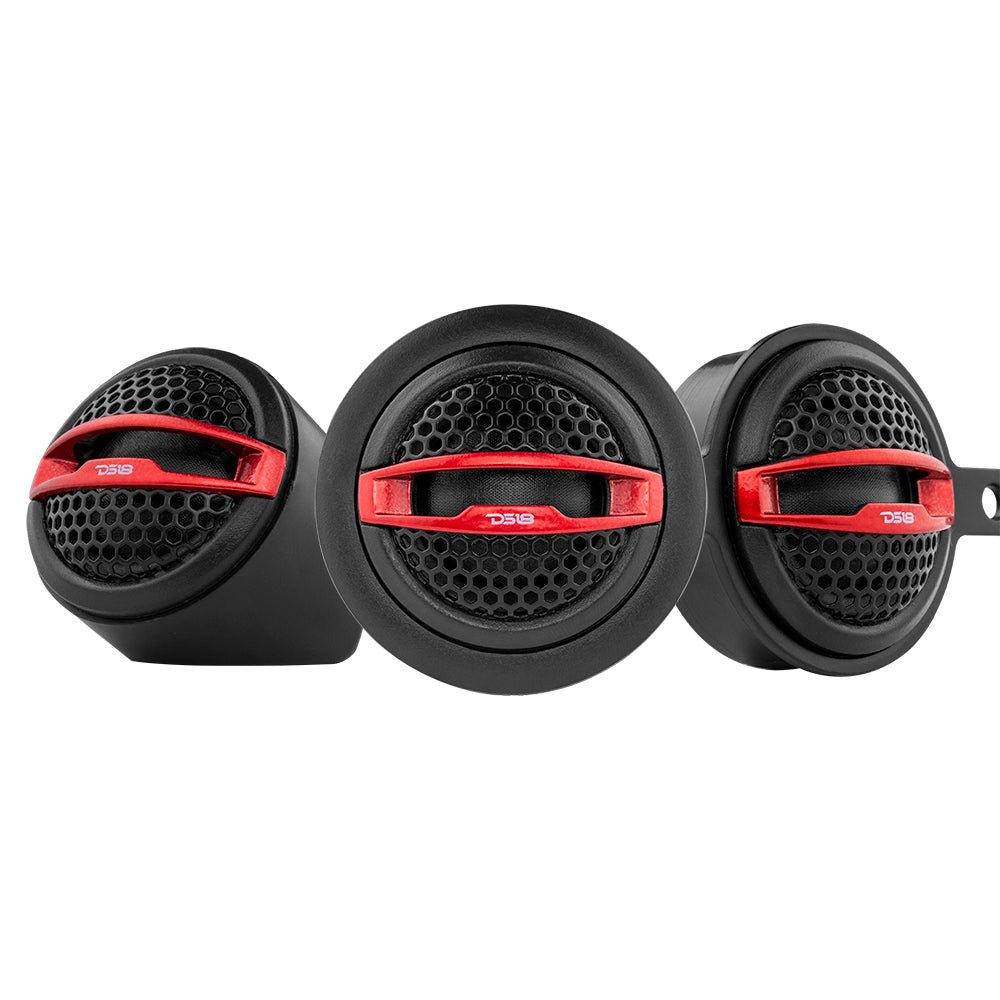

| TWEETER SPECIFICATIONS |
|
| Voice Coil Diameter |
1" / 25.5mm |
| Voice Coil Former Material |
ASV |
| Winding Material |
EISVM |
| Diaphragm Material |
Silk |
| Magnet Material |
Neodymium |
| Magnet Weight |
8.7g |
| TWEETER MEASUREMENT |
|
| Overall Diameter |
1.7" / 43.5mm |
| Overall Depth |
1" / 27mm |
| Front Mount Baffle Cutout |
1.6" / 40.8mm |
| Mounting Depth |
0.57" / 14.5mm |

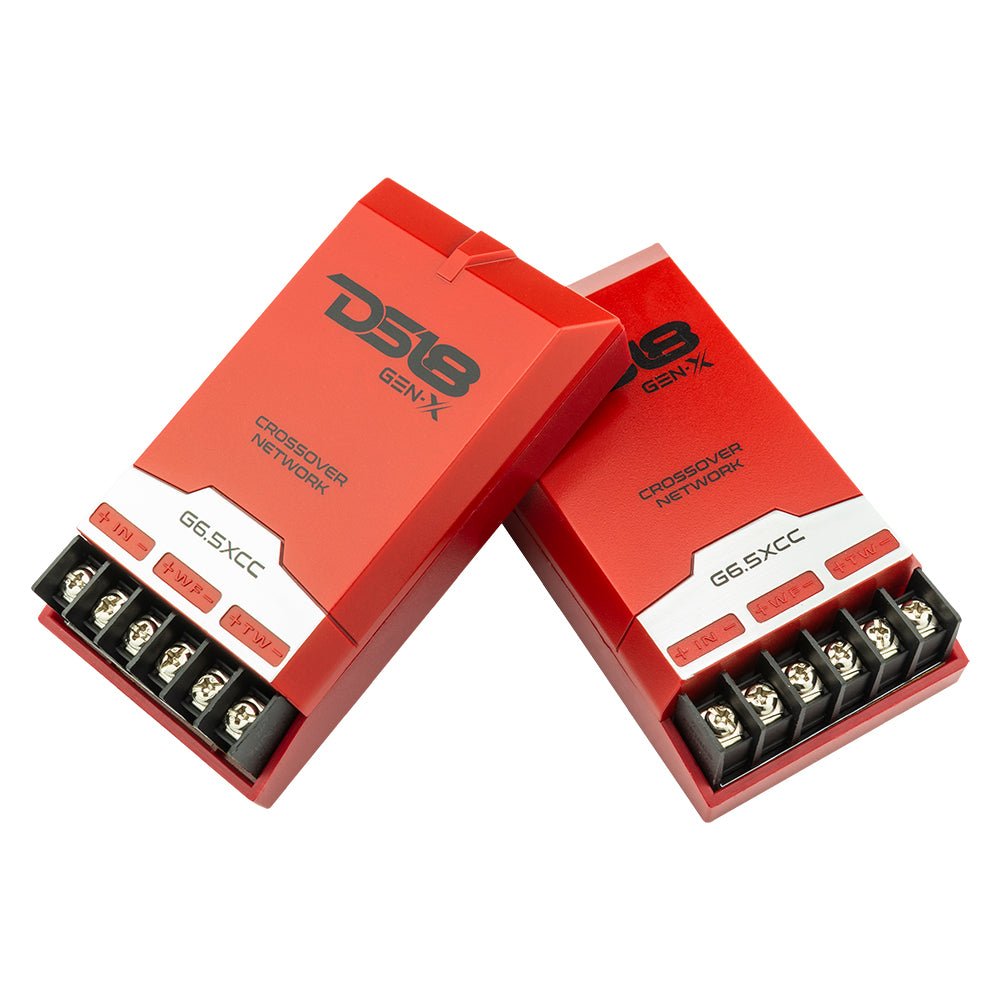

| CROSSOVER SPECIFICATIONS |
|
| Passive Crossover Ways |
2 (Woofer / Tweeter) |
| Frequency Crossover point |
3.5KHz |
| Power Handling |
400W |
| Cut-Off Slope |
12dB/Oct |
| Tweeter Attenuation |
N/A |
| CROSSOVER MEASUREMENT |
|
| Overall Length |
2.55" / 65mm |
| Overall Depth |
4.7" / 120mm |
| Overall Height |
1" / 27.5mm |
