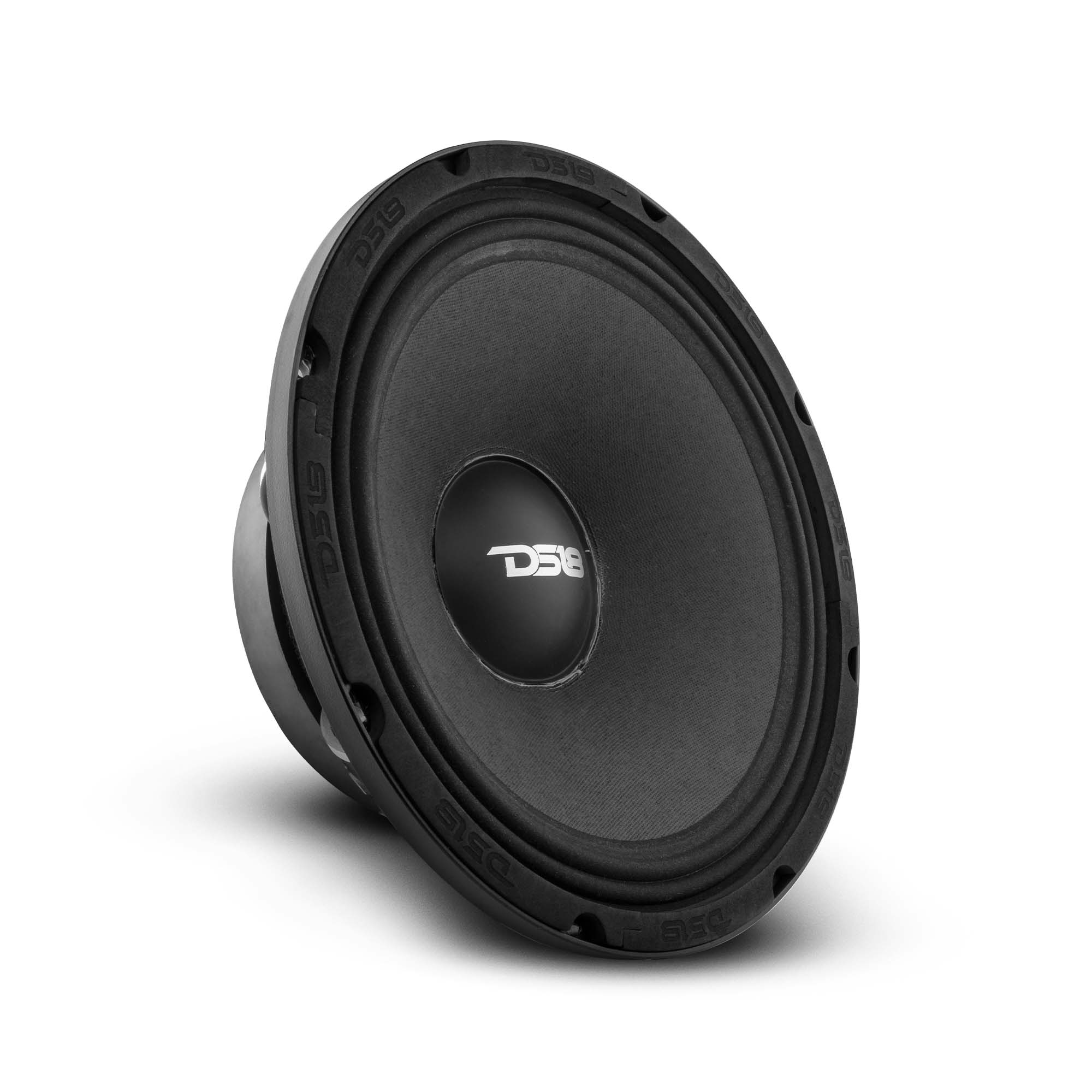

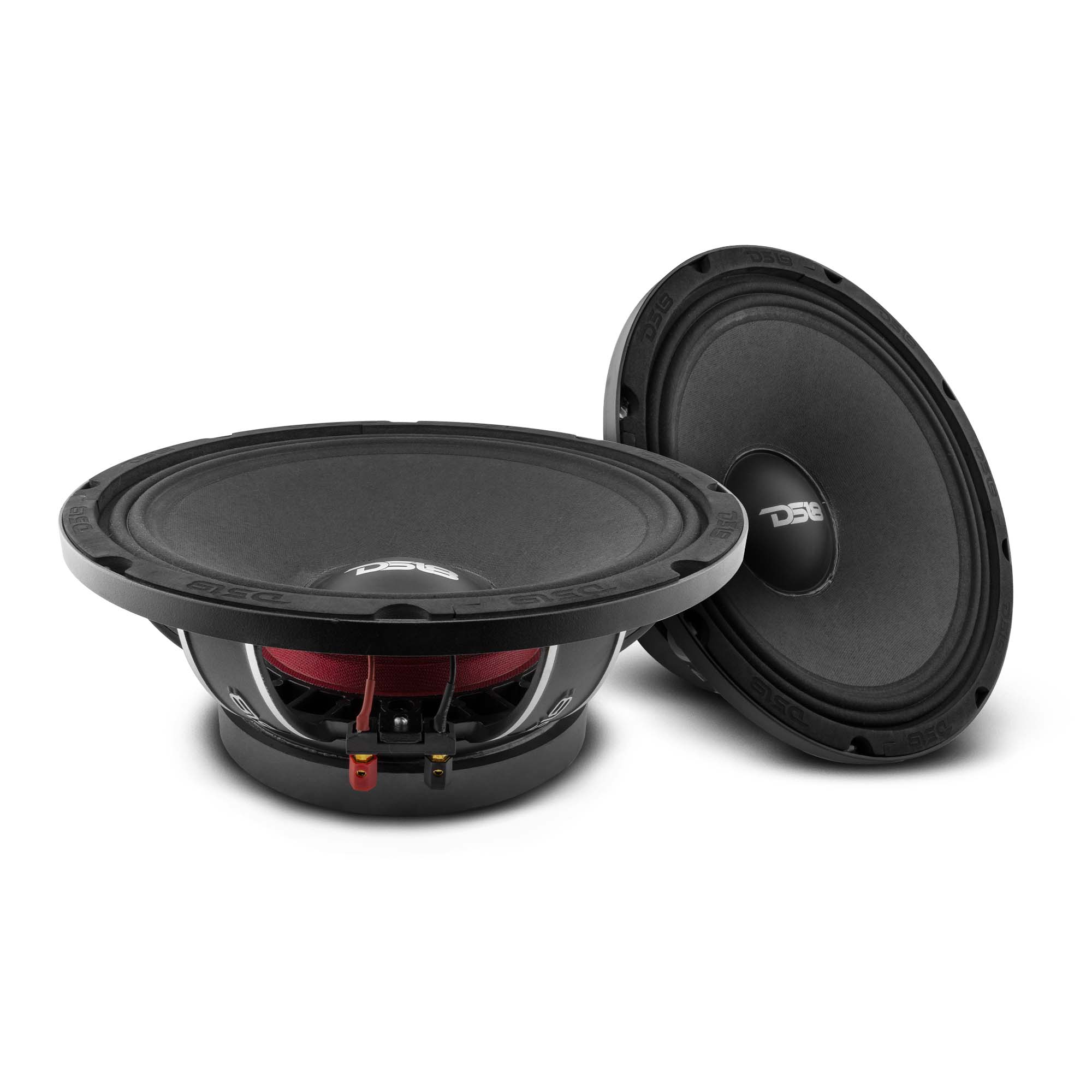

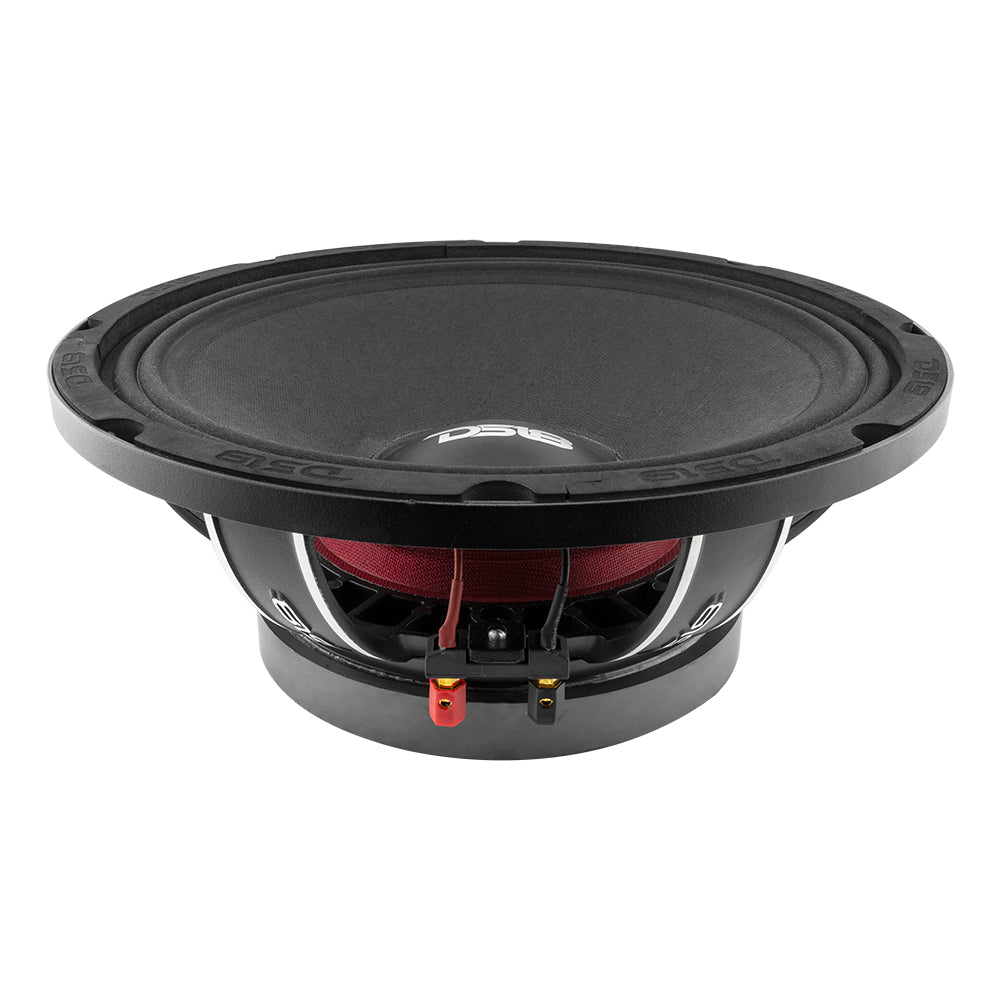

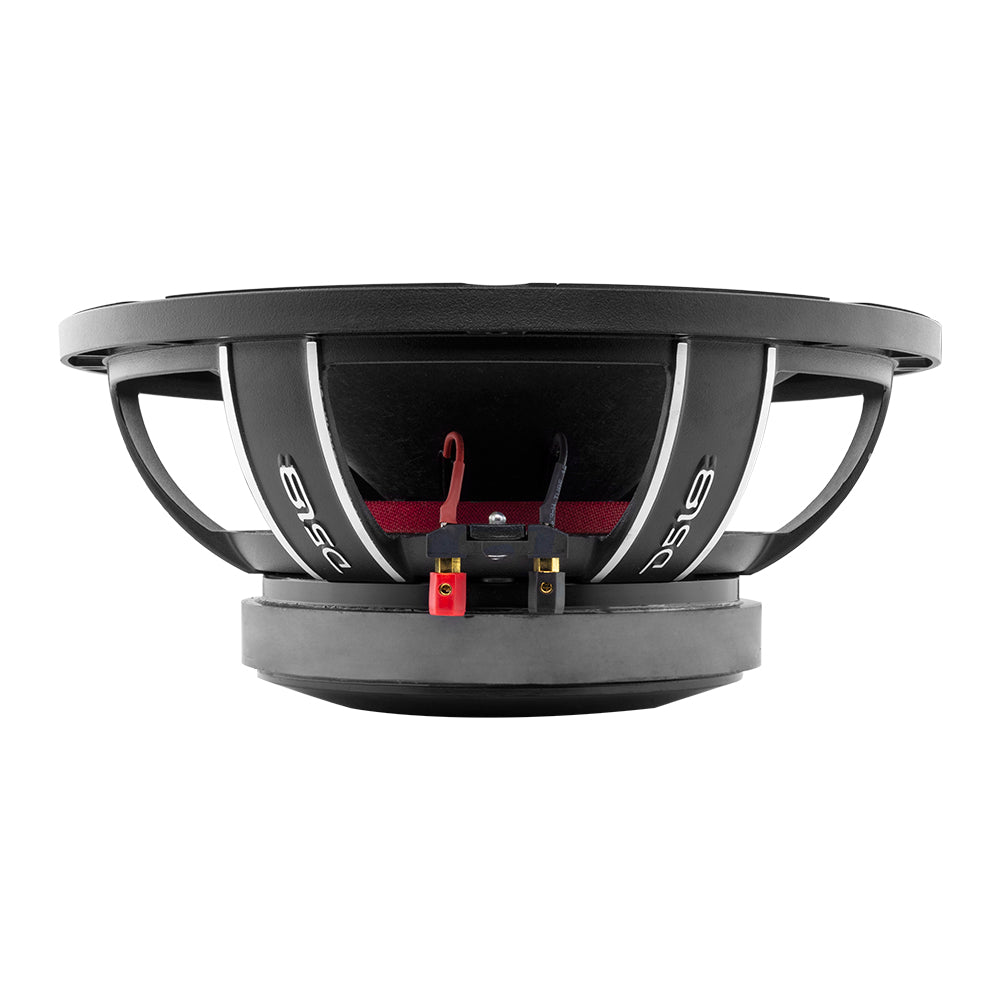

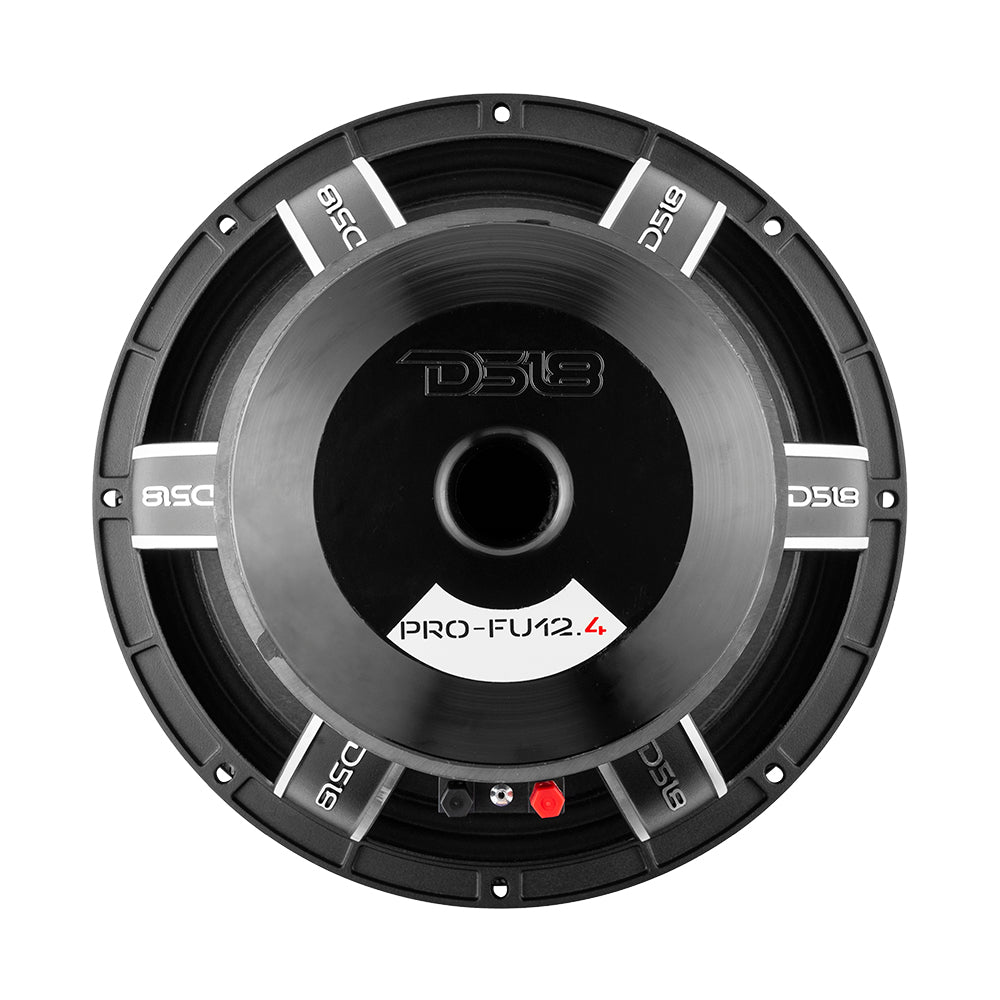

DS18 PRO-FU12.4 12" Mid-Range Loudspeaker 1200 Watts 4-Ohm
A fresh new DS18 Mid-range speaker has landed on the pro audio scene! The PRO-FU12.4 sports a 3 inch voice coil, high quality parts, and are a great choice for your pro audio needs. These were designed to give you maximum musical precision for very high clarity and volume. The 3 inch voice coil will take 600 watts RMS and 1200 watts Max with extreme efficiency and reliability. The PRO-FU will give you screaming vocals but have enough cone area to help with you with your mid-bass.
Highlights
- Amazing pro audio construction that emphasizes loudness and needs to be accompanied by components.
- DS18 Tooled black stealth basket maintaining great looks with the highest integrity in mind.
- High powered pro audio voice coils housed in massive ferrite motors for the greatest efficiency to power ratio possible.
Technical Details
| Model |
PRO-FU12.4 |
| Nominal Diameter |
12" |
| Nominal Impedance |
4 Ohms |
| MAX Power Handling |
1200W |
| RMS Power Handling |
600W |
| Sensitivity (1w/1m) |
97.7 dB |
| Frequency Response |
57Hz-10KHz |
| Recommended HI Pass Crossover |
80Hz |
| Motor |
|
| Voice Coil Diameter |
3" |
| Voice Coil former Material |
Fiber Glass |
| Winding Material |
CCAW |
| Cone Material |
Non-pressed Paper |
| Dust Cap |
Paper |
| Surround Material |
Cloth |
| Basket Material |
Aluminum |
| Magnet Material |
Ferrite |
| Magnet Weight |
100 oz. |
| Measurements |
|
| Overall Diameter |
12.4" |
| Front Mount Baffle Cutout |
5.39" |
| Mounting Depth |
11.2" |
| Overall Depth |
4.92" |
| Motor Diameter |
7.4" |
