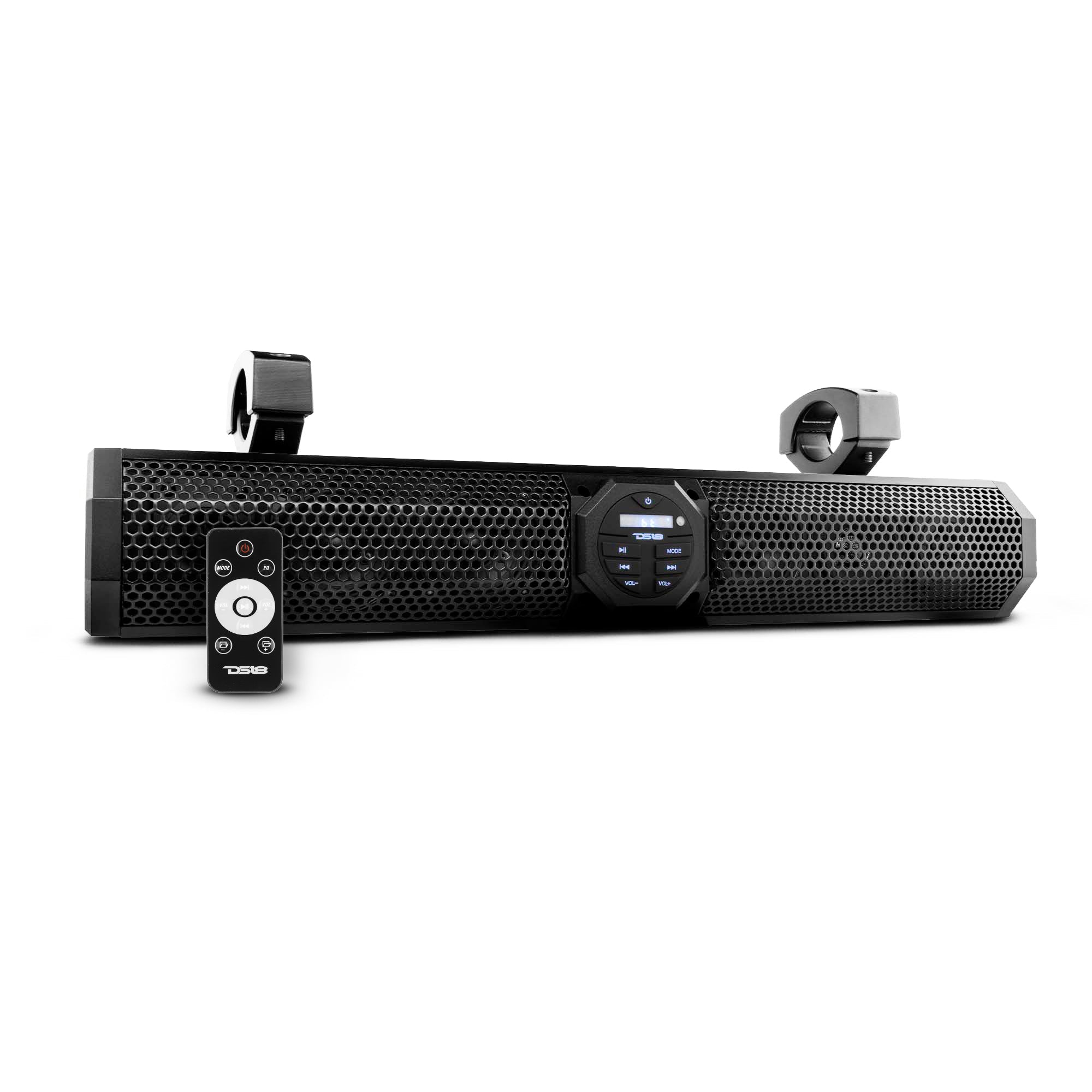

DS18 HYDRO SB24BT 24" Marine Water Resistant Amplified with Bluetooth Sound Bar Speaker System 6 Speakers 600 Watts
The DS18 HYDRO All Elements Series is comprised of many components and accessories to make any build imaginable come to life. We have whatever you need for your ATV, UTV, Side by Side, Boat or anything in between. We invite you to get as creative as possible and make the loudest, clearest system on any terrain, water body, or air.
This DS18 Sound Bar Speaker system is waterproof and perfect for audiophiles or the everyday music listener who wants to add a cool, LOUD, clean sounding, and slick set up in their car, off road, or marine application. This sound bar is sure to make a statement anywhere you go and be heard loud and clear!
Highlights
- Waterproof built in amplifier that provides 600 Peak power on four 3 inch woofer drivers for a great high fidelity outdoors sound.

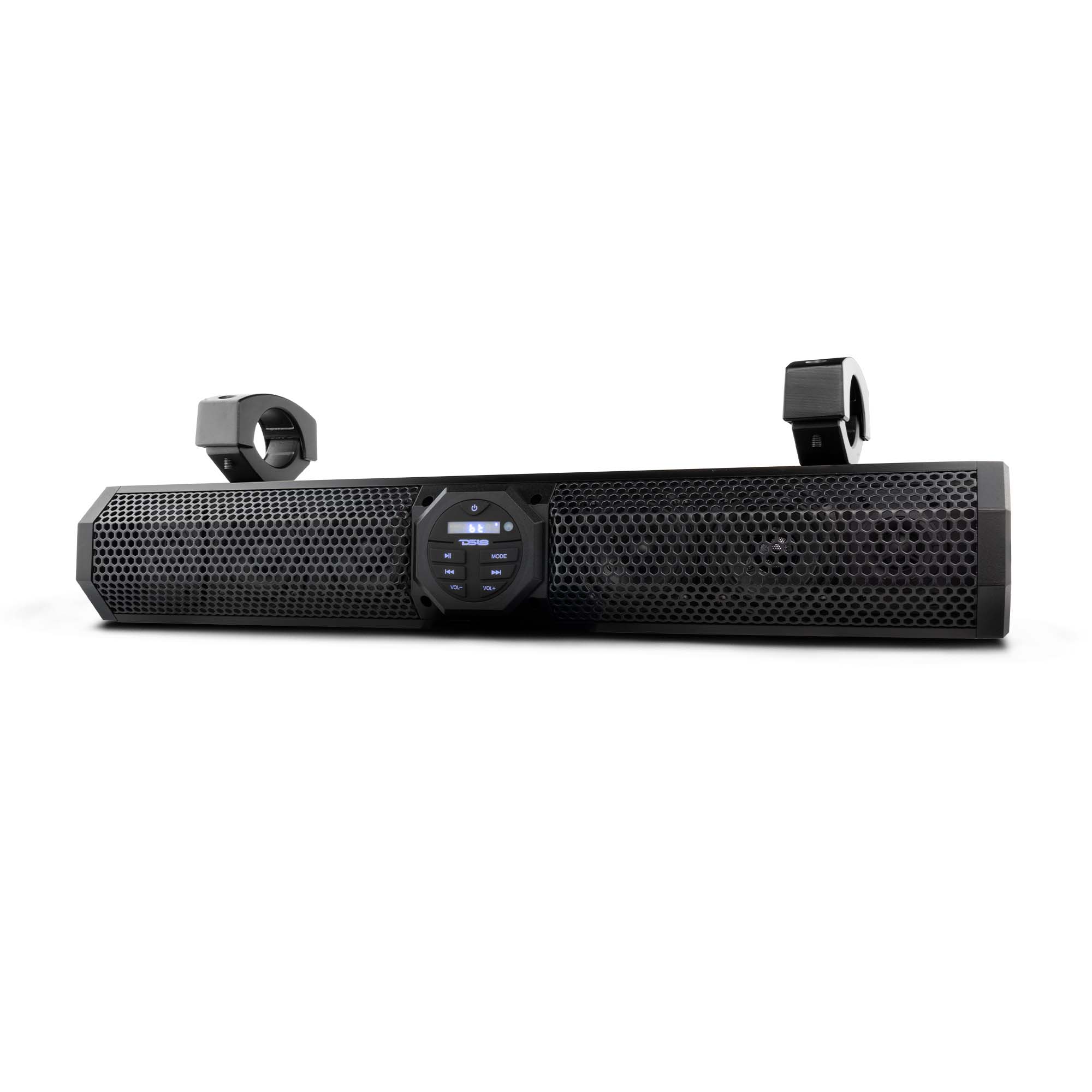

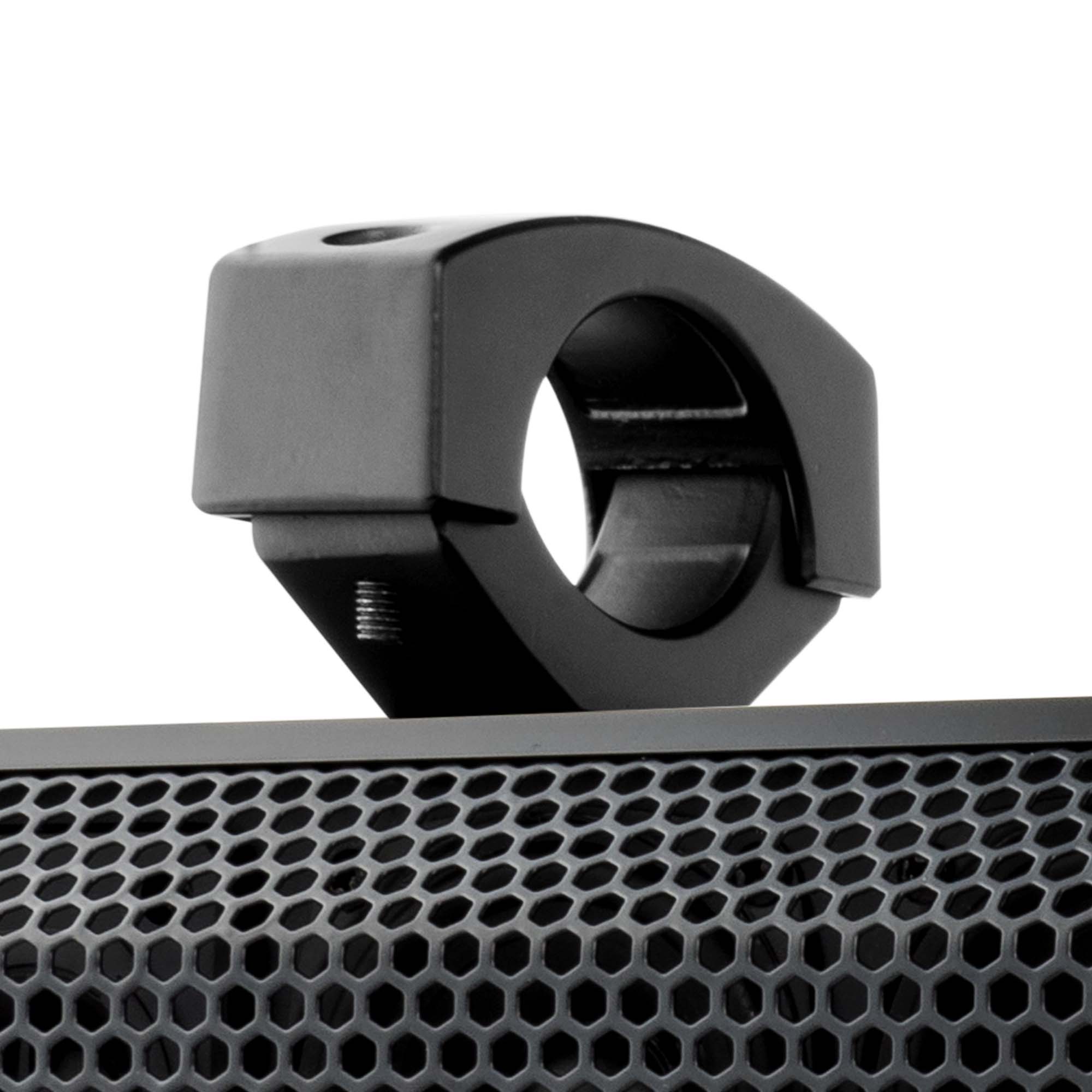

- Strong clamping system adjustable from 1.5 to 2.25 in diameter made to fit all kinds of towers and roll bars.

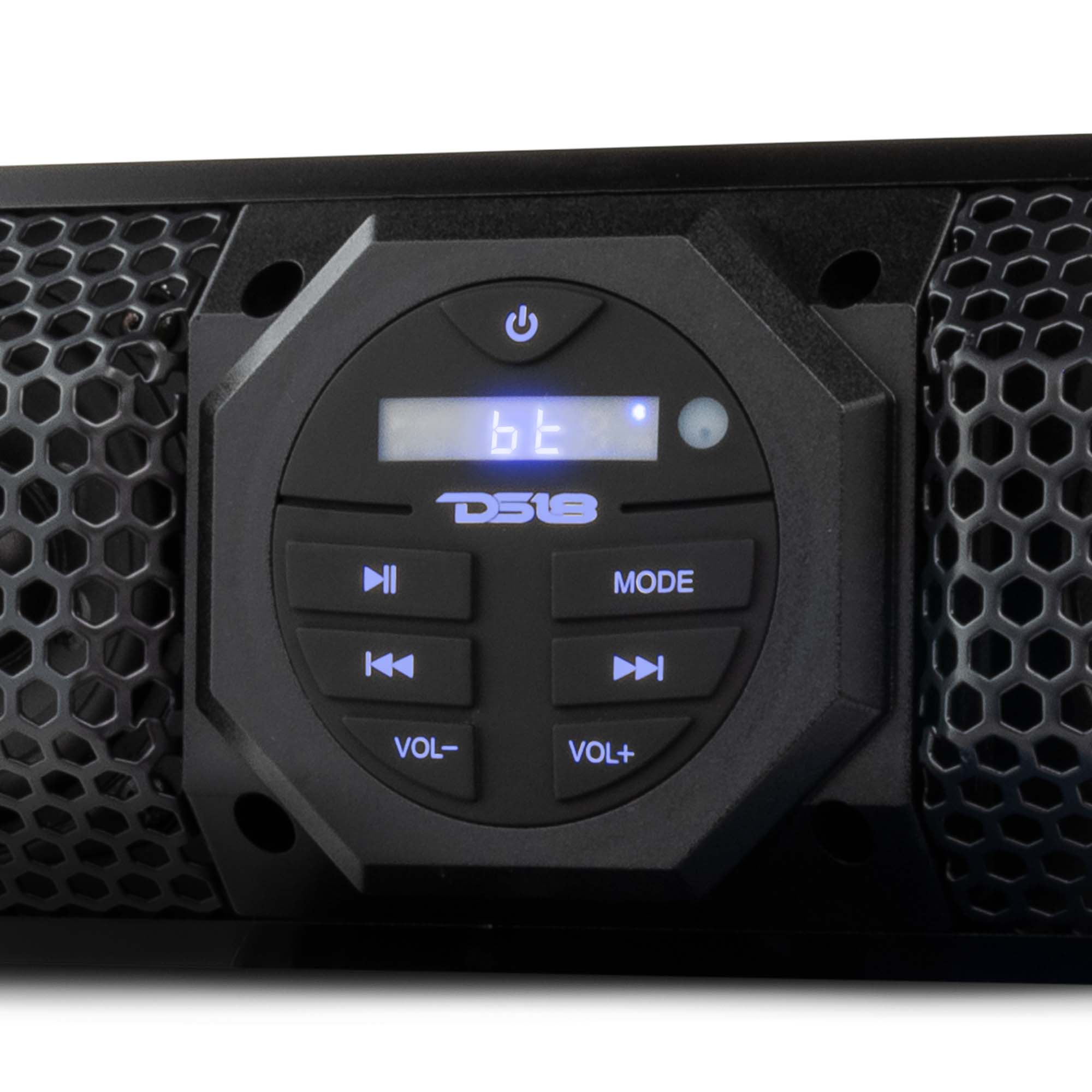

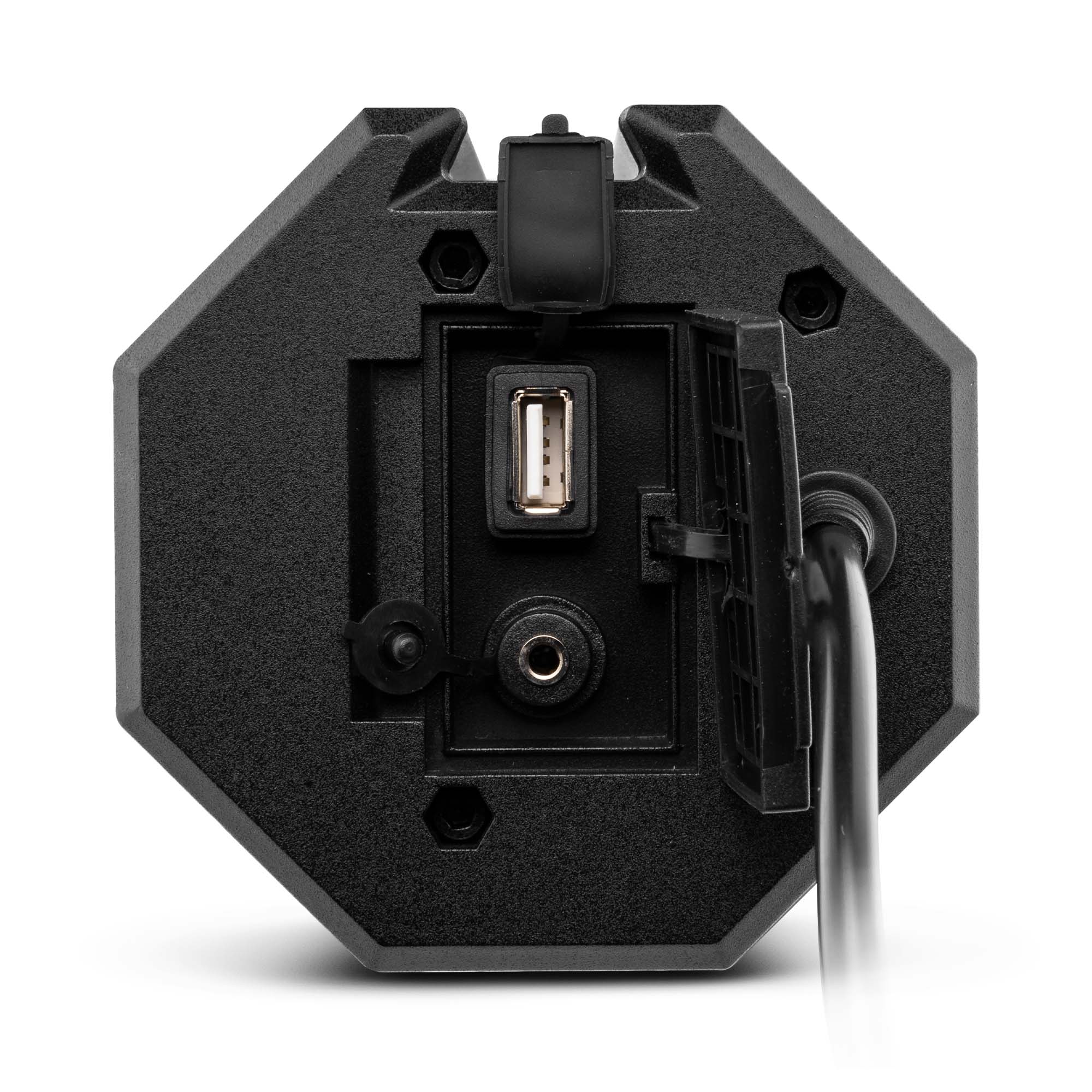

- The easy to use control panel will help you switch between songs and folders with BT connectivity and USB slot option.
Technical Details
| SPECIFICATIONS |
|
| Nominal Size |
24.61" / 625mm |
| Total Watts (Peak) |
600 Watts |
| RMS Power @ 4 ohm |
100 Watts |
| Max Power @ 4 ohm |
200 Watts |
| Frequency Response |
45Hz-20KHz |
| Storage Temperature |
5°F ~ 176°F (-15°C ~ 80°C) |
| Operation Temperature |
32°F ~ 140°F (0°C ~ 60°C) |
| Operation Voltage |
12 Volts (10~16 Volts Range) |
| BODY/FEATURES |
|
| Marine Grade Type |
IPX5 |
| Body Material | Color | Finish |
Aluminum / Oxidized Black Hemp Sand |

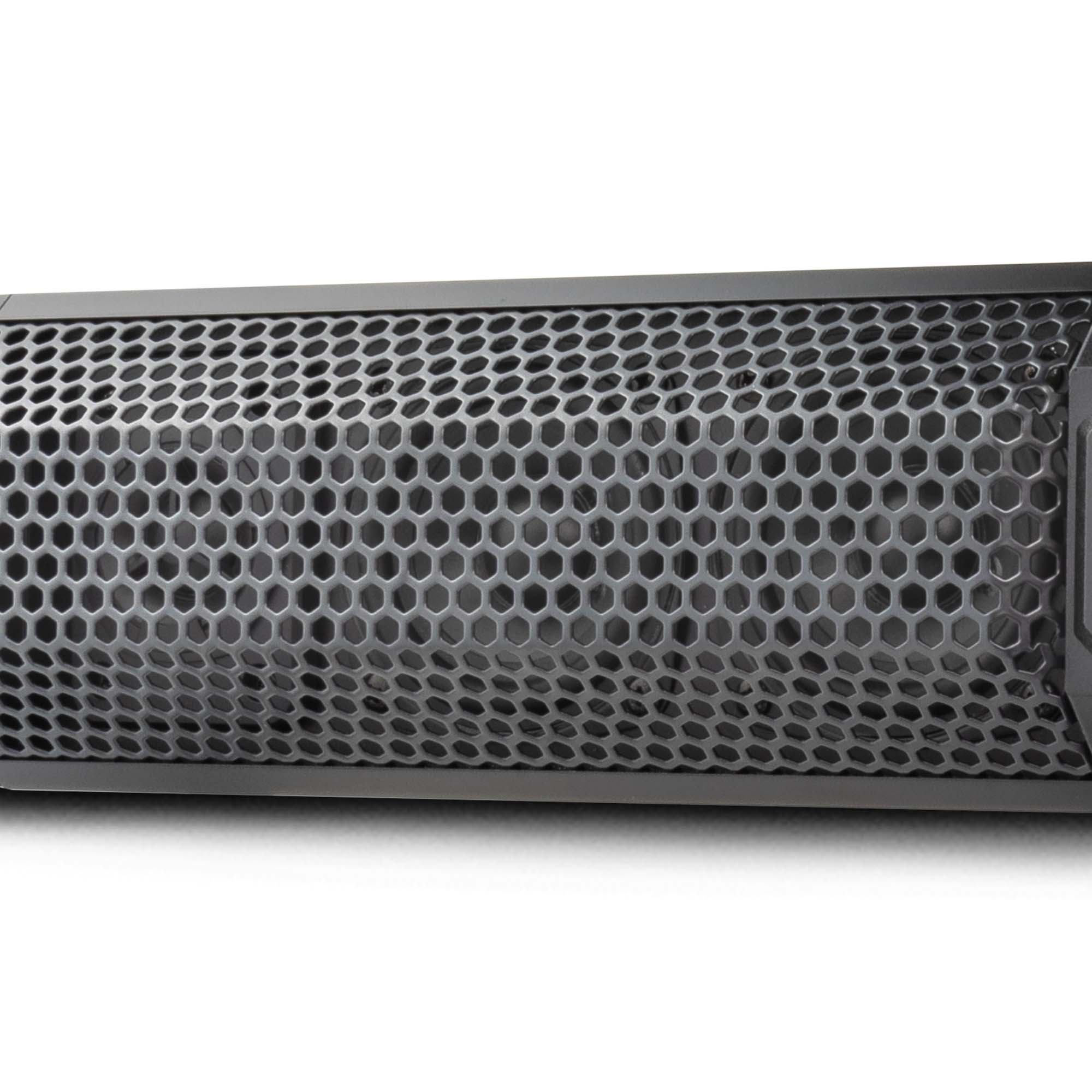

| Grill Type |
Steel Mesh |
| Qty on Box |
1 pcs |
| Clamps |
2 Set (Tube Clamp Adjustable 1.5" ~ 2.25") |
| Front Logo |
Yes |
| RCA Line Out (Pre-Amp) |
No |
| Aux Line Input |
Yes, (720mV) |
| EQ| DSP |
5 Preset EQ (for BT and USB Mode) |
| Remote Out |
No |
| USB Player |
Yes (WMA, MP3 files) |
| USB Charge |
Yes (1Amp) |
| Buttons | Controls |
Yes (Power, Mode, Play/Pause,Fwd, Bwd,Vol+/Vol-) |

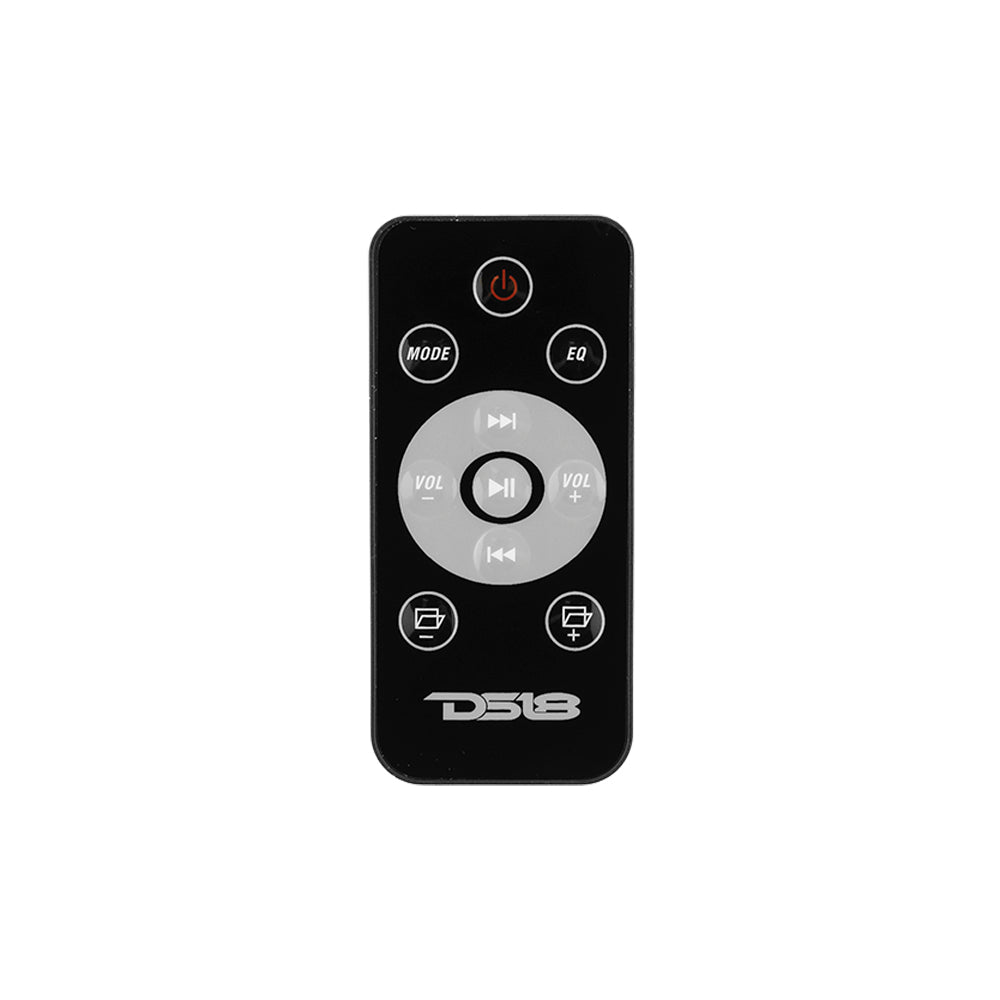

| Remote Control |
Yes (IR Card Type) |
| Ilumination |
Yes (Blue Backlit) |
| WOOFER SPECIFICATIONS |
|
| Nominal Diameter |
3" / 76.2mm (4 Pcs) |
| Voice Coil Diameter |
0.8" / 20.4mm |
| Voice Coil Former Material |
Kapton |
| Cone Material |
Spk1: PPI / Spk2: Paper |
| Surround Material |
Spk1: Rubber / Spk2: Cloth |
| Basket Material |
Steel |
| Magnet Material |
Ferrite |
| Motor Diameter |
2.36" / 60mm |
| TWEETER SPECIFICATIONS |
|
| Nominal Diameter |
0.94" / 24mm (2 Pcs) |
| Voice Coil Diameter |
0.8" / 20.4mm |
| Type |
Dome |
| Diaphragm Material |
Soft Dome |
| Magnet Material |
Neodymium |
| Crossover |
6dB/oct |
| AMPLIFIER SPECIFICATIONS |
|
| Amplifier Class |
Class A/B |
| Amplifier Type |
Stereo Full Range |
| Number of Channels |
4 |
| Minimum Impedance |
4 Ohm |
| Signal to Noise Ratio |
68dB |
| T.H.D. |
1% @ 1000Hz |
| Channel Separation |
60dB |
| Audio Source |
BT, USB, AUX, |
| Power Input Wire Size |
2x16ga |
| Recommend Fuse Size |
10A |
| MAX Current Draw |
7A |
| Thermal Protection |
Yes (>284°F / 140°C) |
| Over-Load Protection |
Yes |
| Short Circuit Output Protection |
Yes |
| Voltage Input Protection |
No |
| BT SPECIFICATIONS |
|
| Version |
V5 |
| Audio Protocols |
A2DP |
| Range |
>33ft (10m)* / Class 2 |
| MEASUREMENTS |
|
| Overall Width |
24.6" / 625 mm |
| Overall Height |
3.98" / 101 mm |
| Overall Depth |
3.98" / 101 mm |
