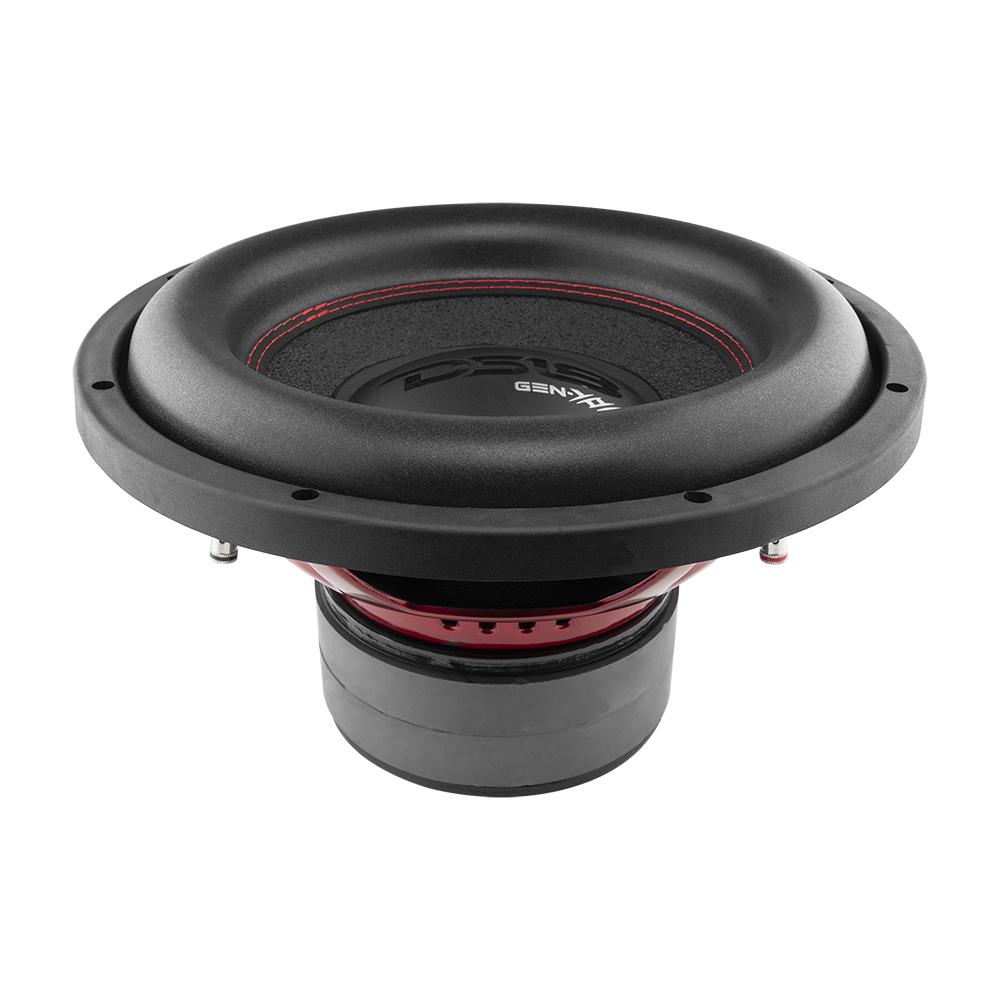

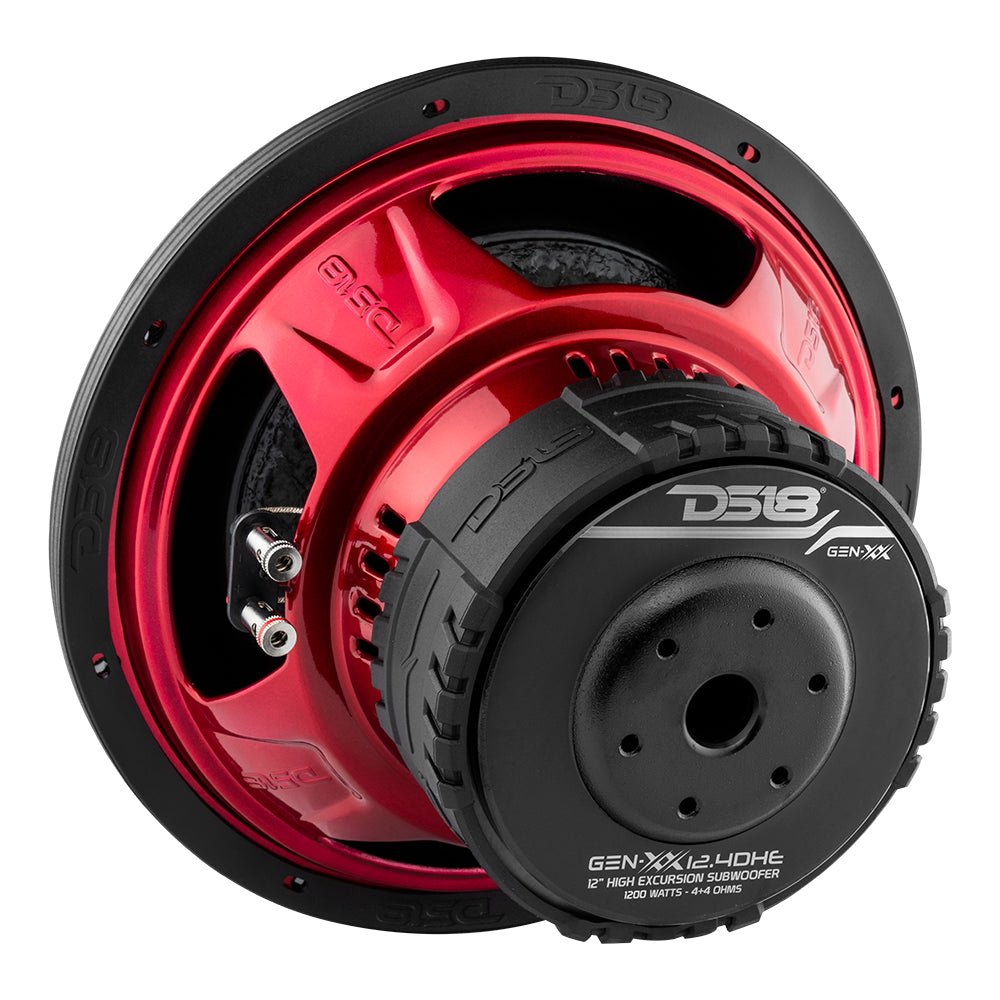

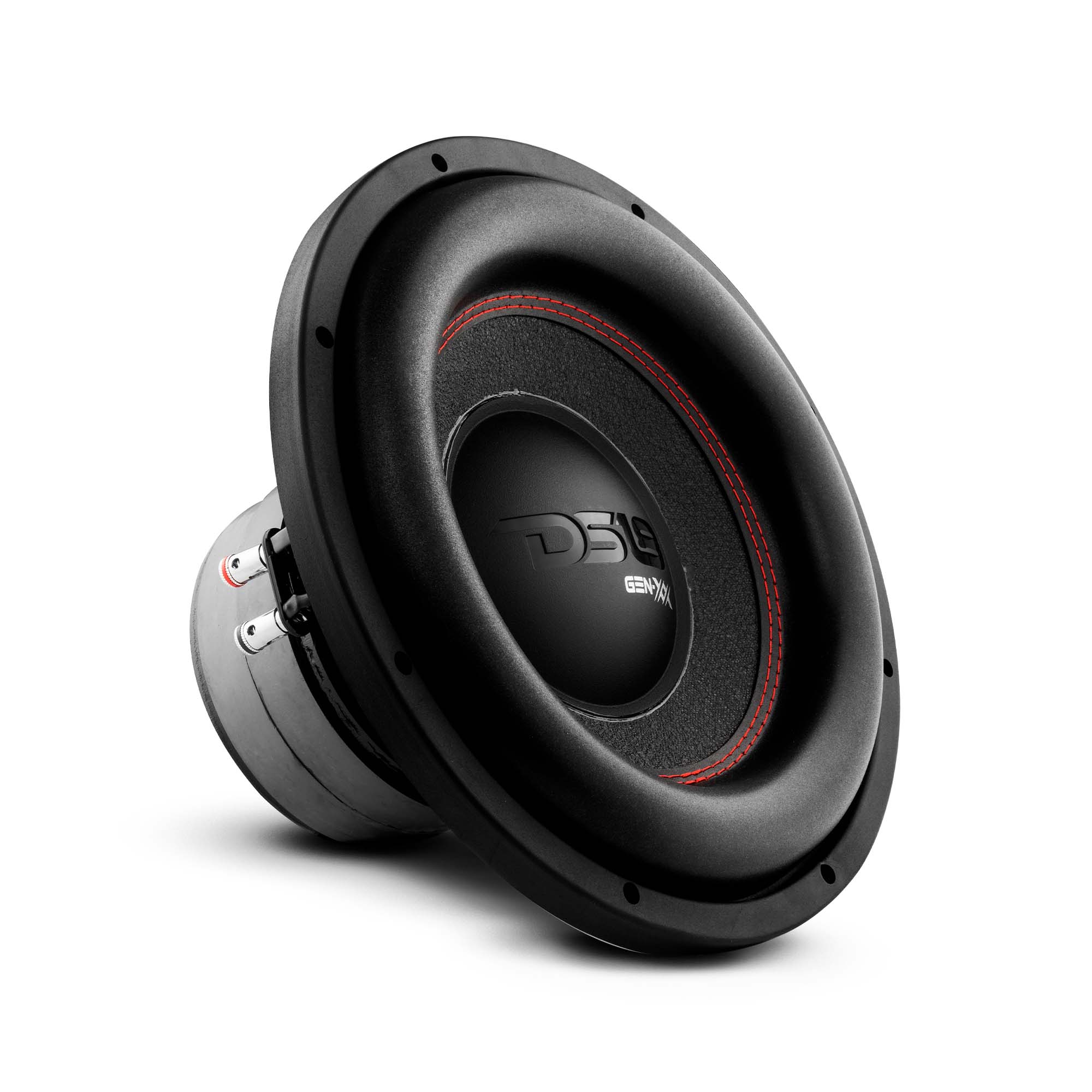

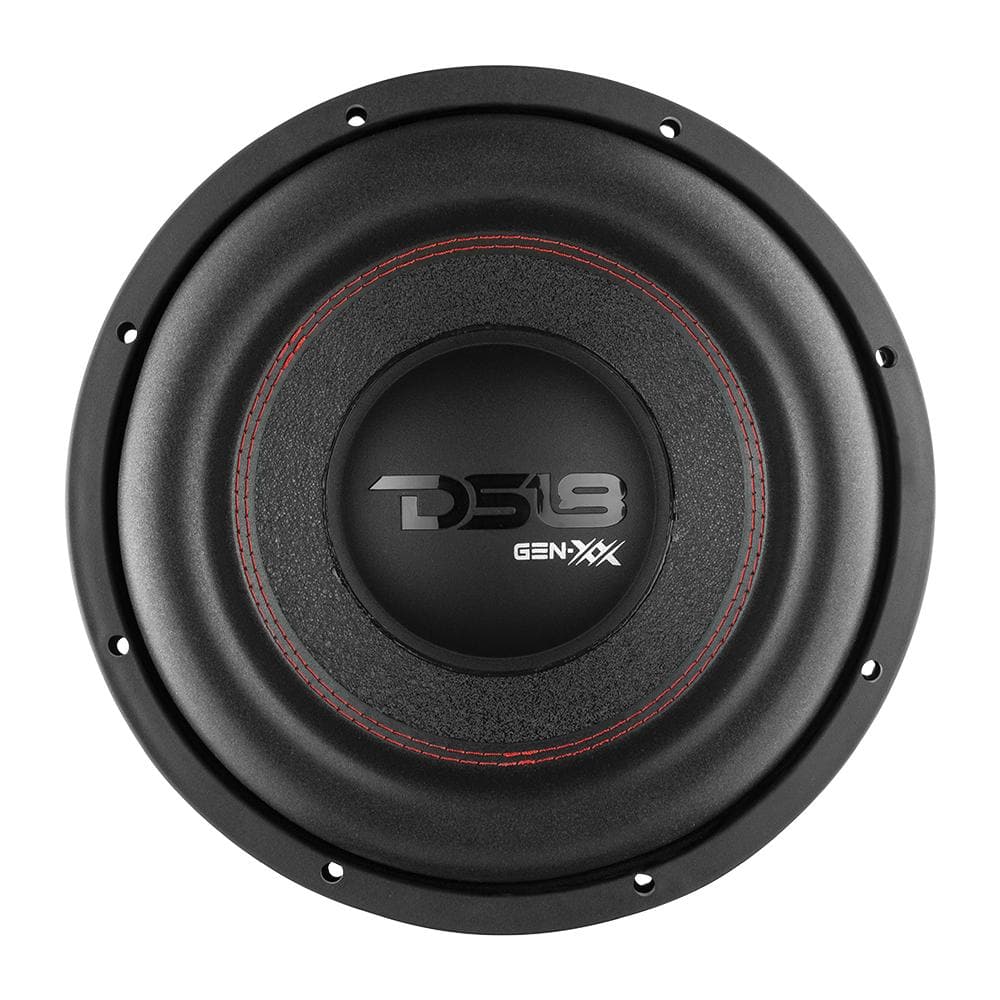

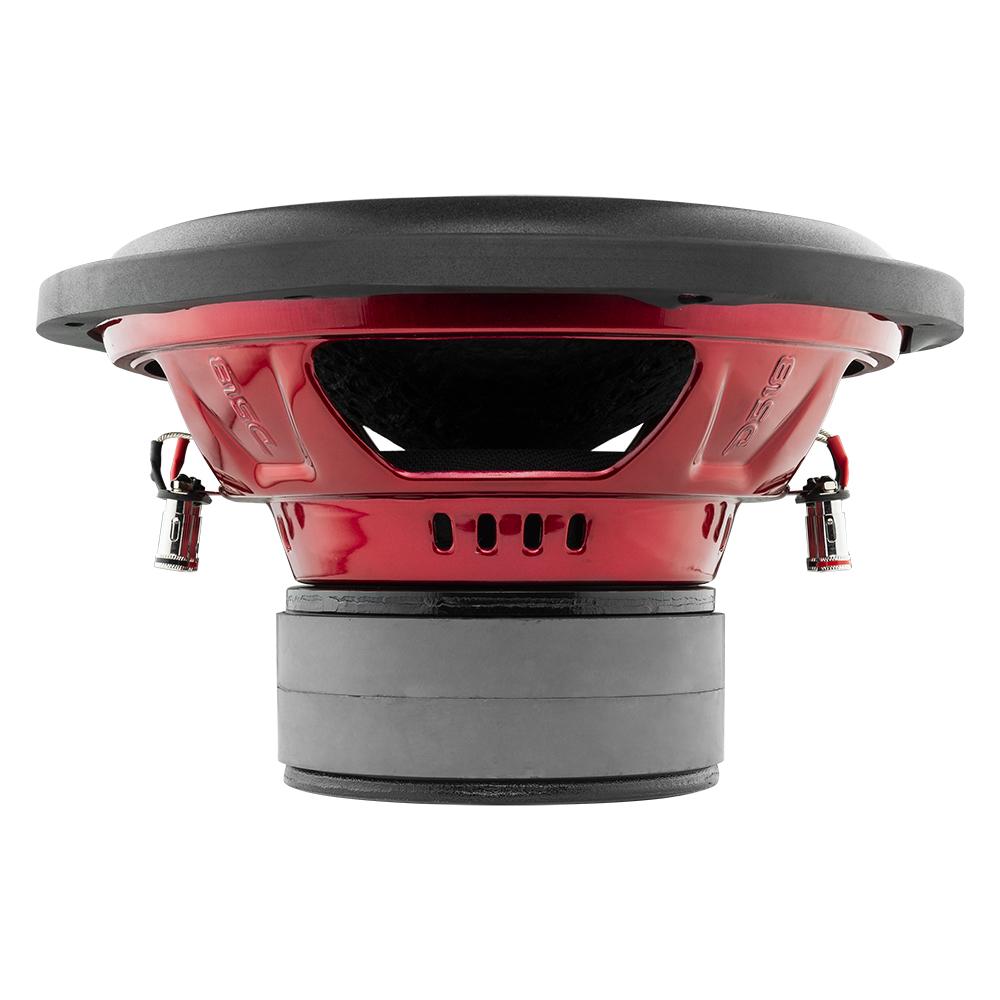

DS18 GEN-XX12.4DHE 12" High Excursion Car Subwoofer 1200 Watts 4-Ohm DVC Double Magnet

High excursion is now the mainstream and usually this feature is very expensive. Enthusiasts sometimes miss out on amazing bass because of the large cost. We want to bring the experience of low frequency bass to even the entry level user. The GEN-XX12.4DHE is the answer to that issue. This Subwoofer is a mid-tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with.

Highlights

• High Excursion surround for a very high amount of XMAX.
• Great power handling of 600w RMS and 1200w Max.
• Long three voice coil and extended magnet to accommodate the xmax increase.
• FS of 30 Hz so you can easily dip in the subsonic range with no issues along as your box is tuned correctly.

Technical Details

GEN-XX12.4DHE Product Manual

Nominal Diameter	12
Nominal Impedance	4 + 4 Ohms
RMS Power Handling	600W
MAX Power Handling	1200W
Sensitivity (1w/1m)	86.7 dB
Frequency Response	20Hz - 1.5KHz
Recommended Lo Pass Crossover	80 Hz
Motor:
VC Diameter	2
VC Former Material	Black Aluminum
Winding Material	SV
Cone Material	Paper
Dust Cap Material	PPI
Surround Material	Foam
Basket Material	Steel
Basket Color/Finish	Glossy Red
Magnet Material	Ferrite
Magnet Weight	136 Oz
Displacement Volume	1.69L
Thiele & Small Parameters
Equivilant Vol	Vas 56.436L
Excursion (one way)	Xmax 25 mm
Free Air Resonance	Fs 30.5 Hz
Mechanical Factor	Qms 3.991
Electrical Factor	Qes 0.532
Total Factor	Qts 0.469
Moving Mass	Mms 154.38g
Compliance	Cms 0.175mm/N
Bl Factor	BL 19.173N/A
VC Inductance	Le 0.6741mH
Diaphragm Area	Sd 475.29cm2
Dc Resistance	Re 3.2+3.2 ohms
Efficiency Bandwidth Product	EBP 57.3

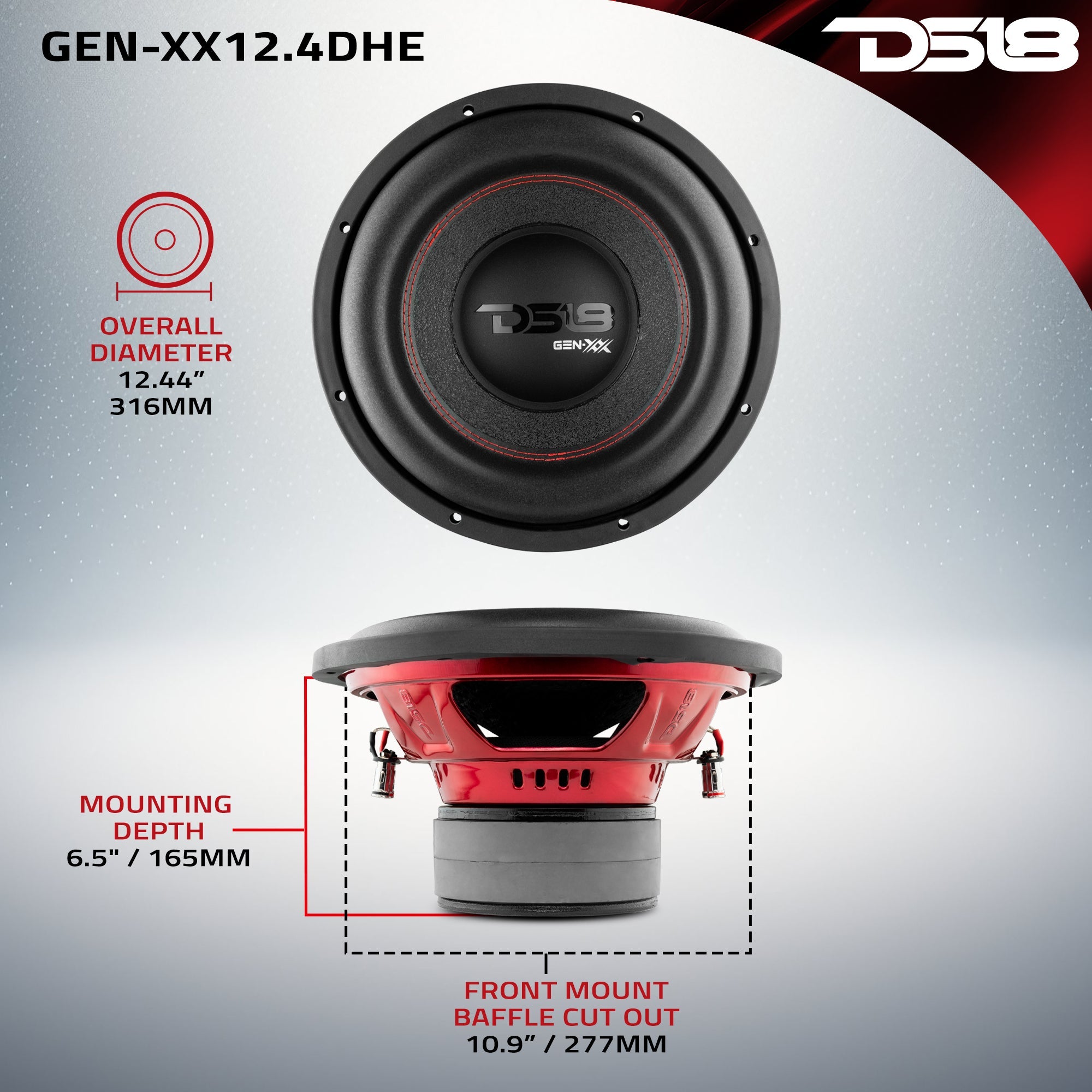

Measurements
Overall Diameter	12.44 / 316mm
Overall Depth	7.6" / 193mm
Front Mount Baffle Cutout	10.9 / 277mm
Mounting Depth	6.5" / 165mm
Motor Diameter	6.14/ 156 mm

Box Info
