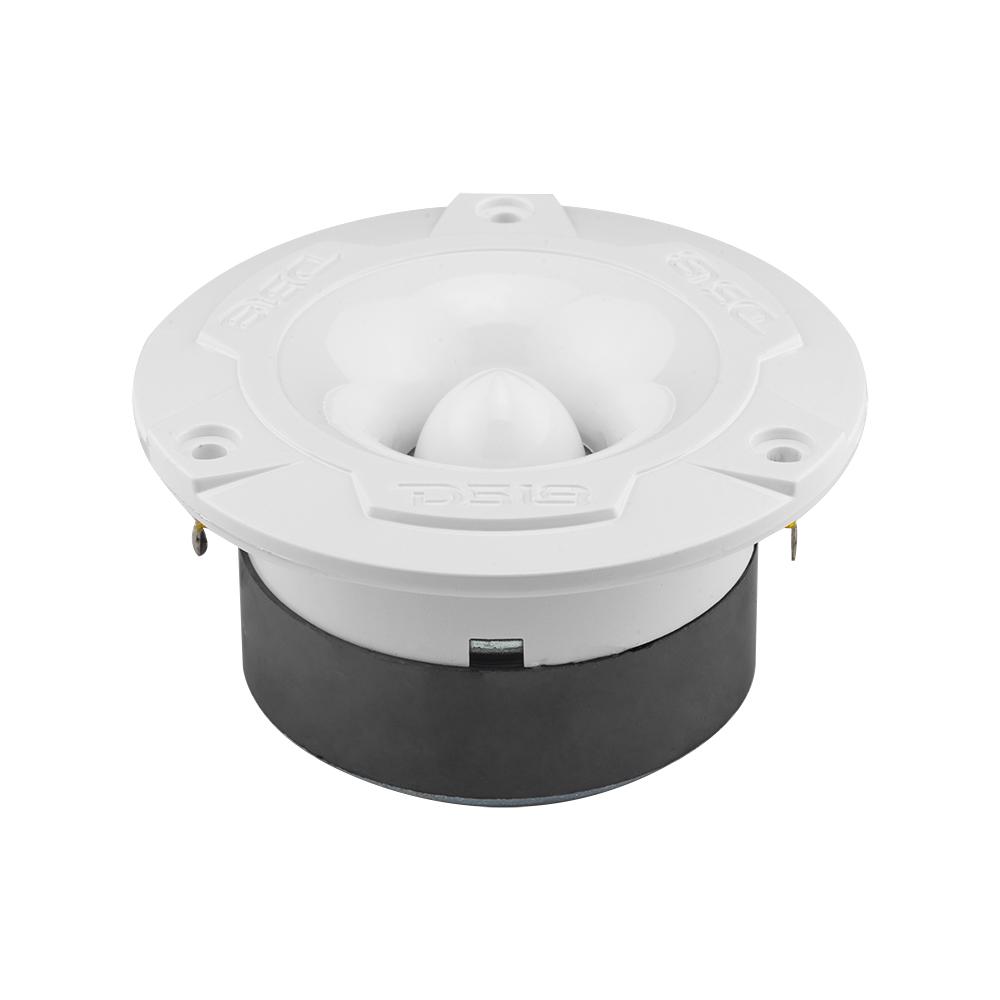

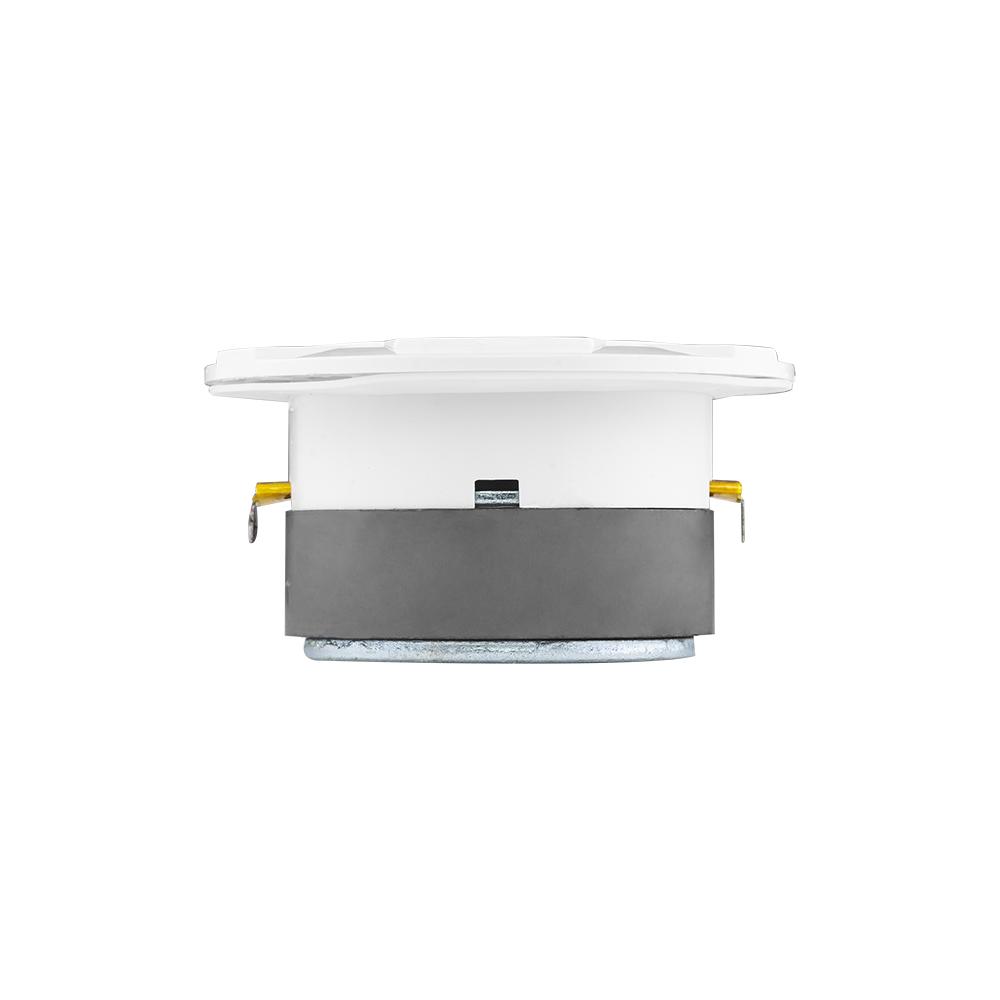

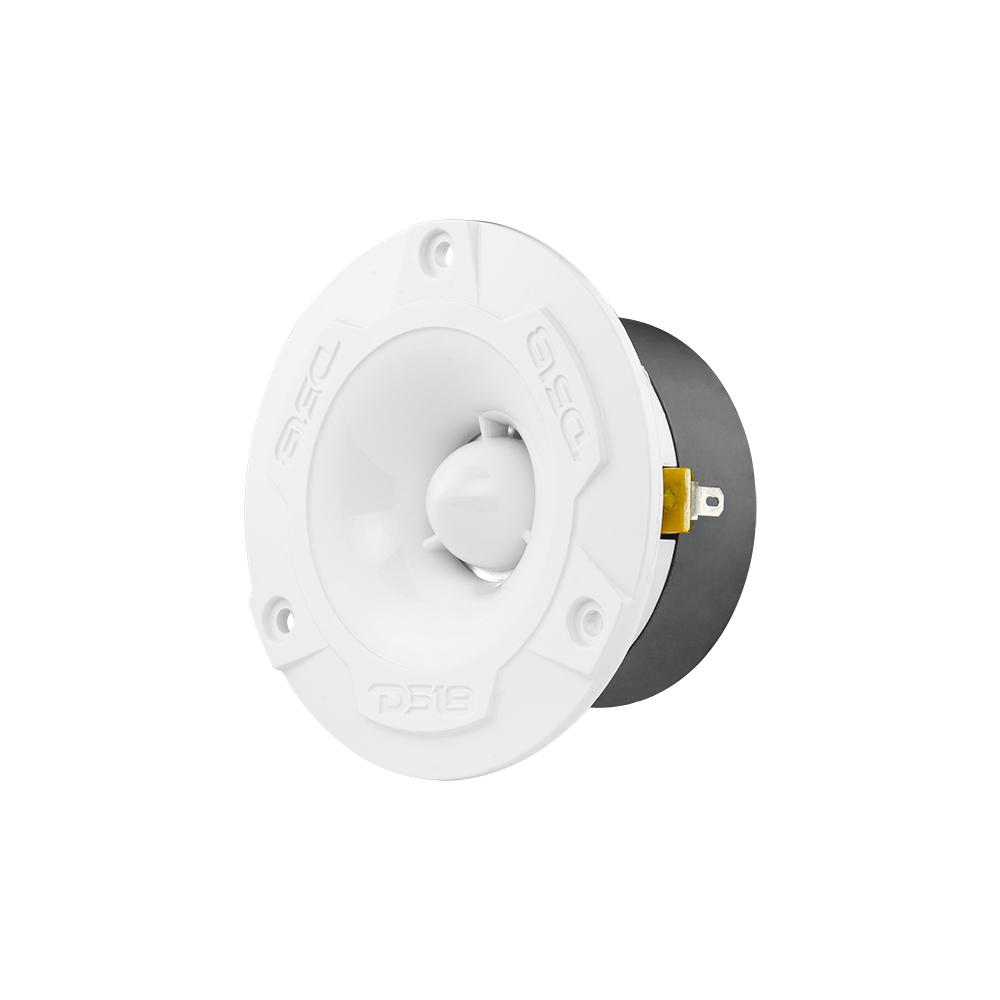

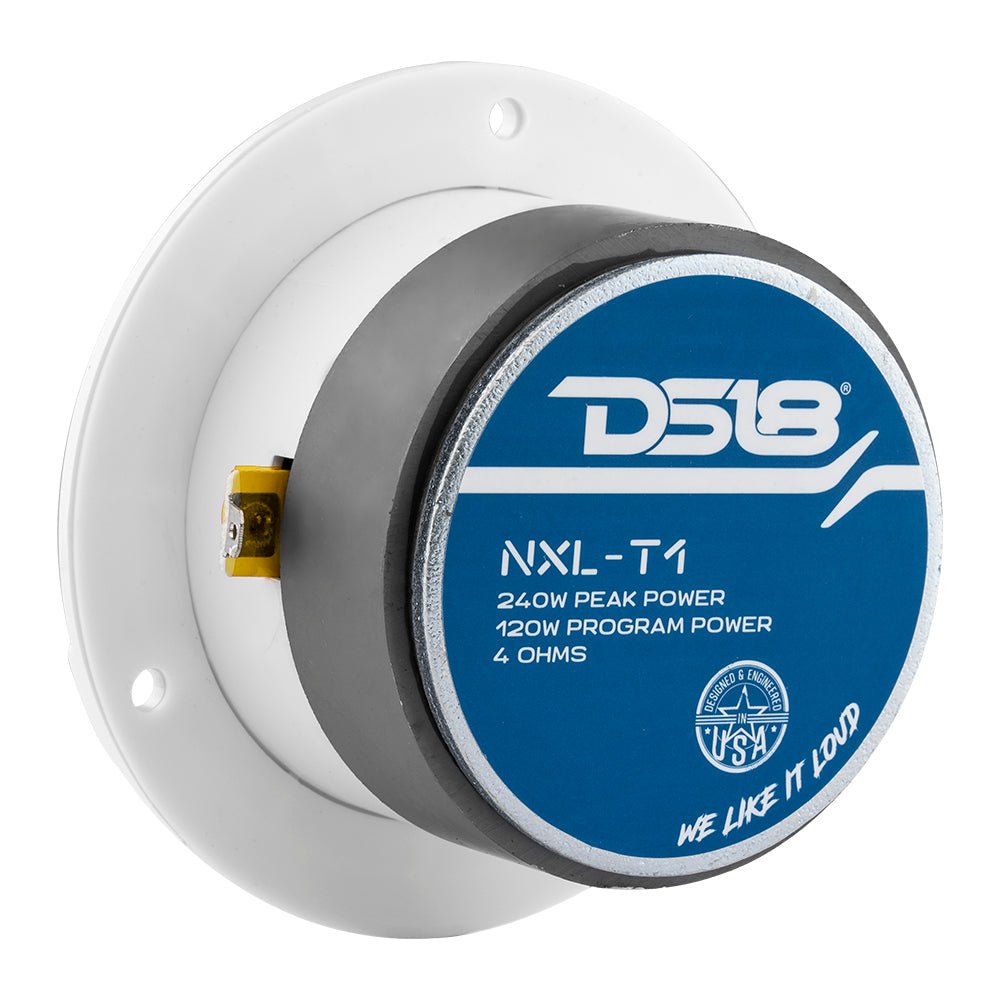

DS18 HYDRO NXL-T1 Marine Water Resistant 3.8" Super Bullet Tweeter 240 Watts 1" Aluminum VC 4 Ohm
For fierce elements you need a completely 100% waterproof tweeter. DS18 is now happy to introduce the NXL-T1 Hydro water proof tweeter to blast the highs while you are out in the elements. This tweeter is designed to bring amazing clear highs while not leaving any of the inner working exposed so they will not be damaged by corrosion or water. These tweeters are perfect for exposed 4x4, marine, and motorcycle applications for worry free sound.
Highlights
- 100% waterproof construction so water or moisture cannot cause damage or corrosion.

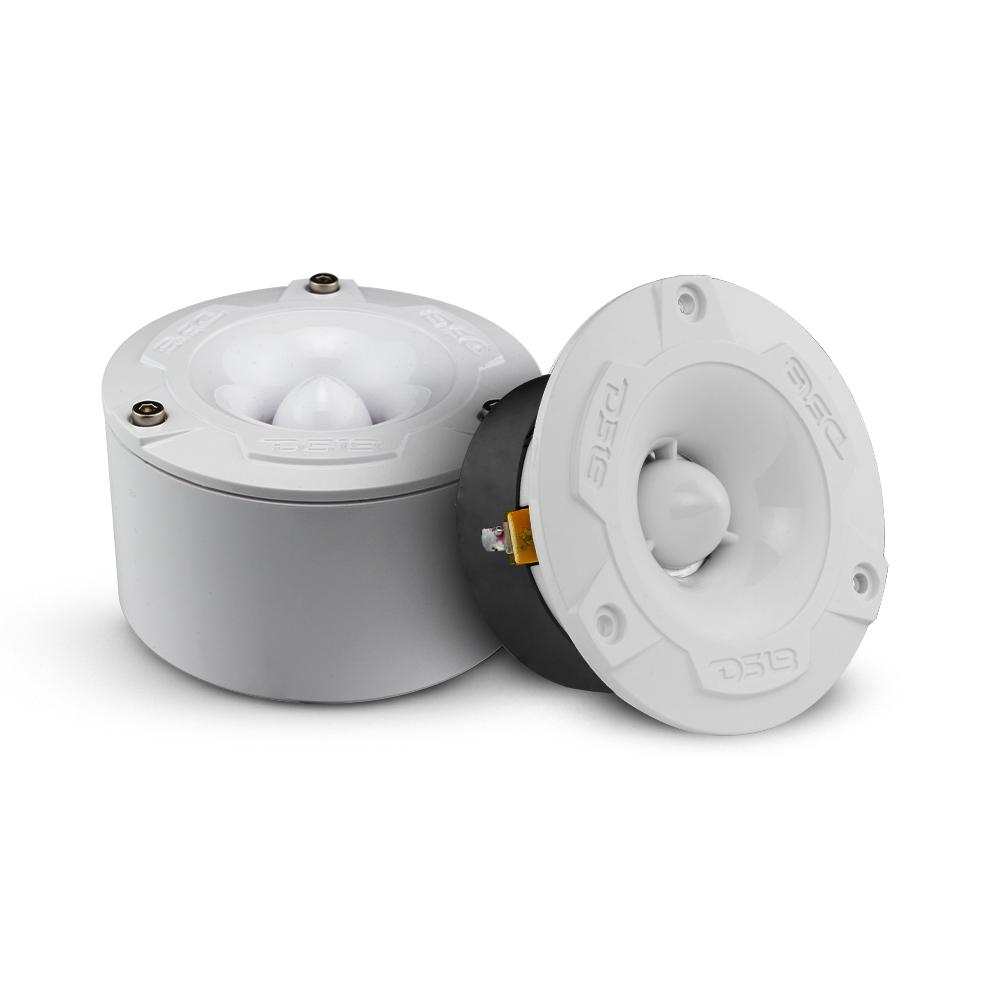

- 2 mode construction that can be used without the included enclosure or with it for added protection.
- Easily mountable in all applications and versatile enough to fit almost anywhere.
Technical Details
| Nominal Diameter |
3.75” / 95.2 mm |
| Nominal Impedance |
4 Ohms |
| AES Power Handling |
60W |
| Program Power Handling |
120W |
| Peak Power Handling |
240W |
| Sensitivity (1w/1m) |
103dB |
| Frequency Response |
3KHz-20 KHz |
| Recommended Hi Pass Crossover |
2 KHz |
| Pair or Single |
Single |
| Marine Grade Type |
IP36 |
| UV & Salt Protection |
Yes |
| MOTOR |
|
| Voice Coil Diameter |
1”/25.4 mm |
| Voice Coil Former Material |
Kapton |
| Winding Material |
CCAW |
| Diaphragm Material |
Aluminum |
| Magnet Material |
Ferrite |
| Magnet Weight |
8 Oz |
| Body Material |
ASA |

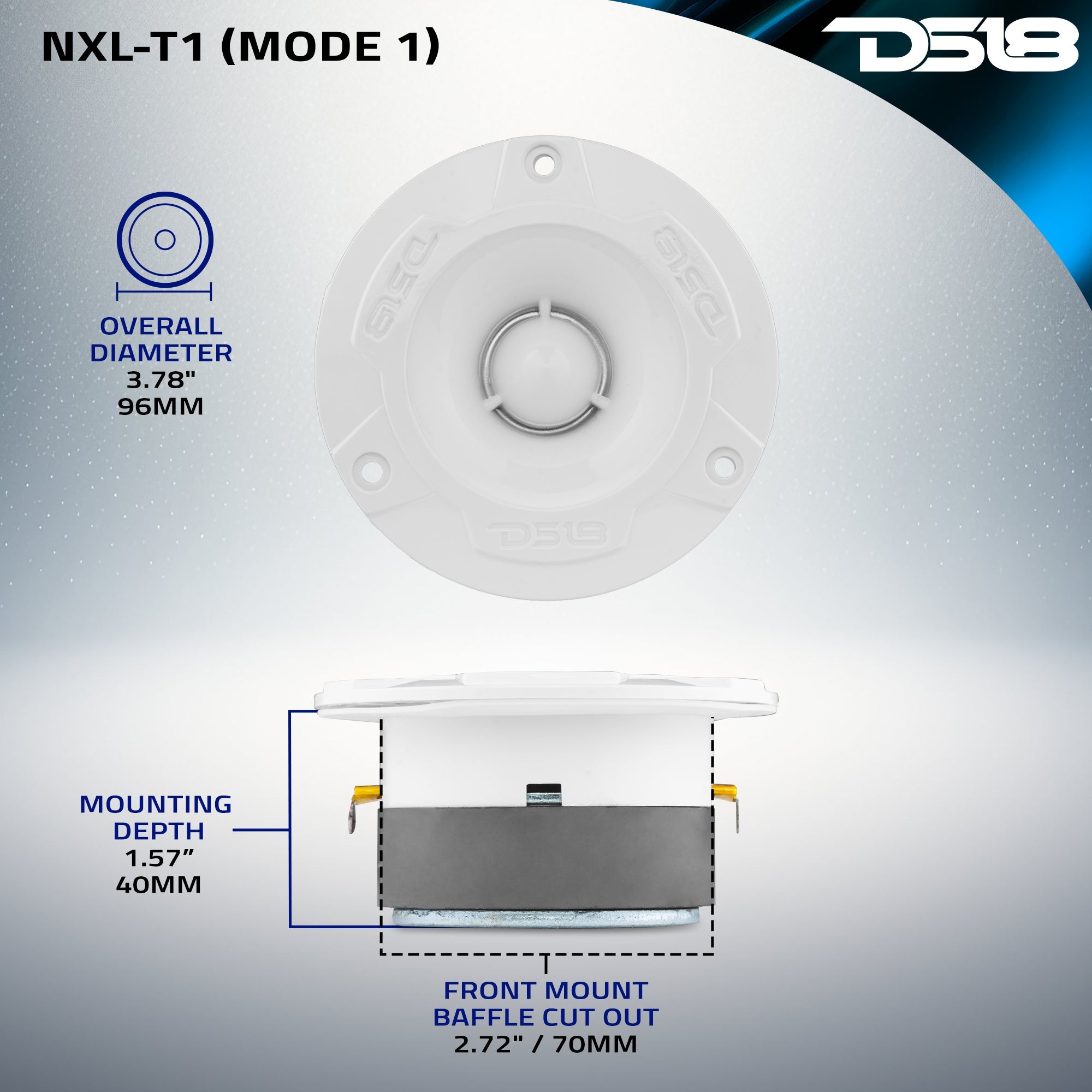

| MEASUREMENTS MODE 1 |
|
| Overall Diameter |
3.78" / 96 mm |
| Overall Depth |
1.78” / 45 mm |
| Front Mount Baffle Cutout |
2.72" / 70 mm |
| Mounting Depth |
1.57” / 40 mm |

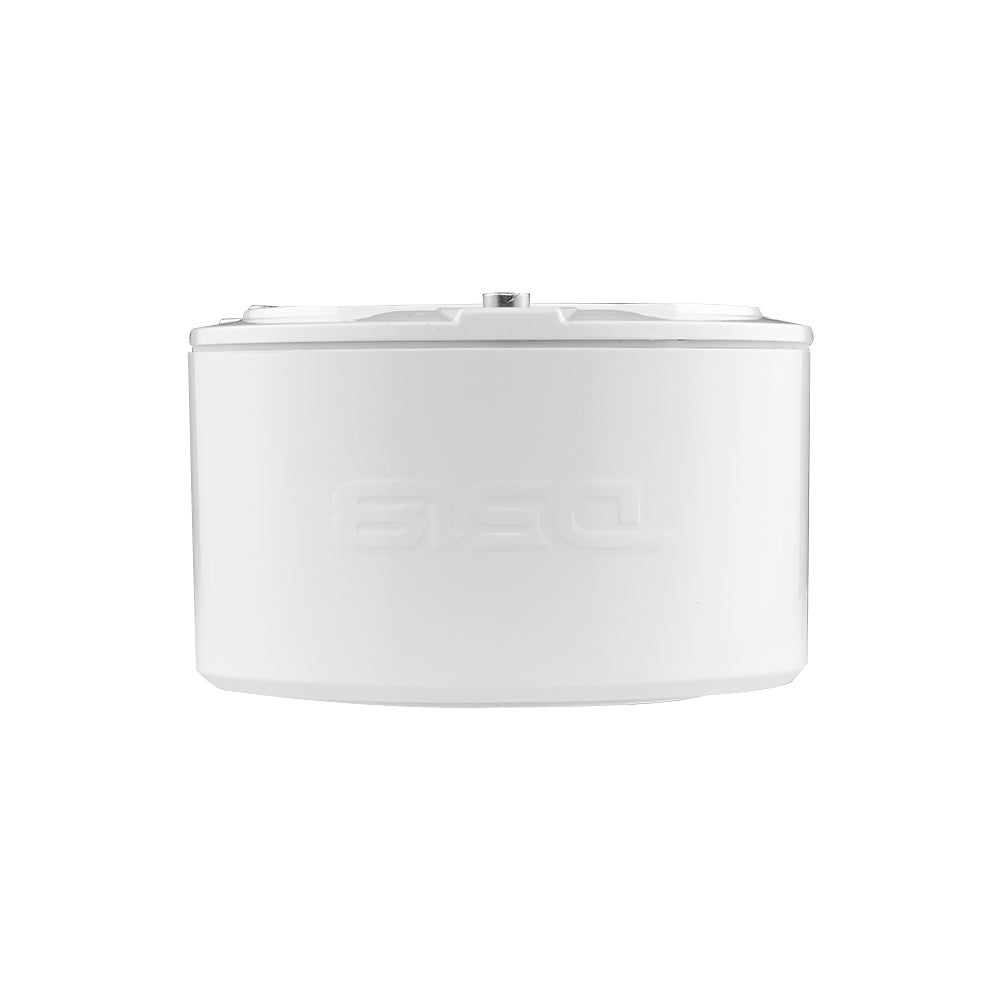

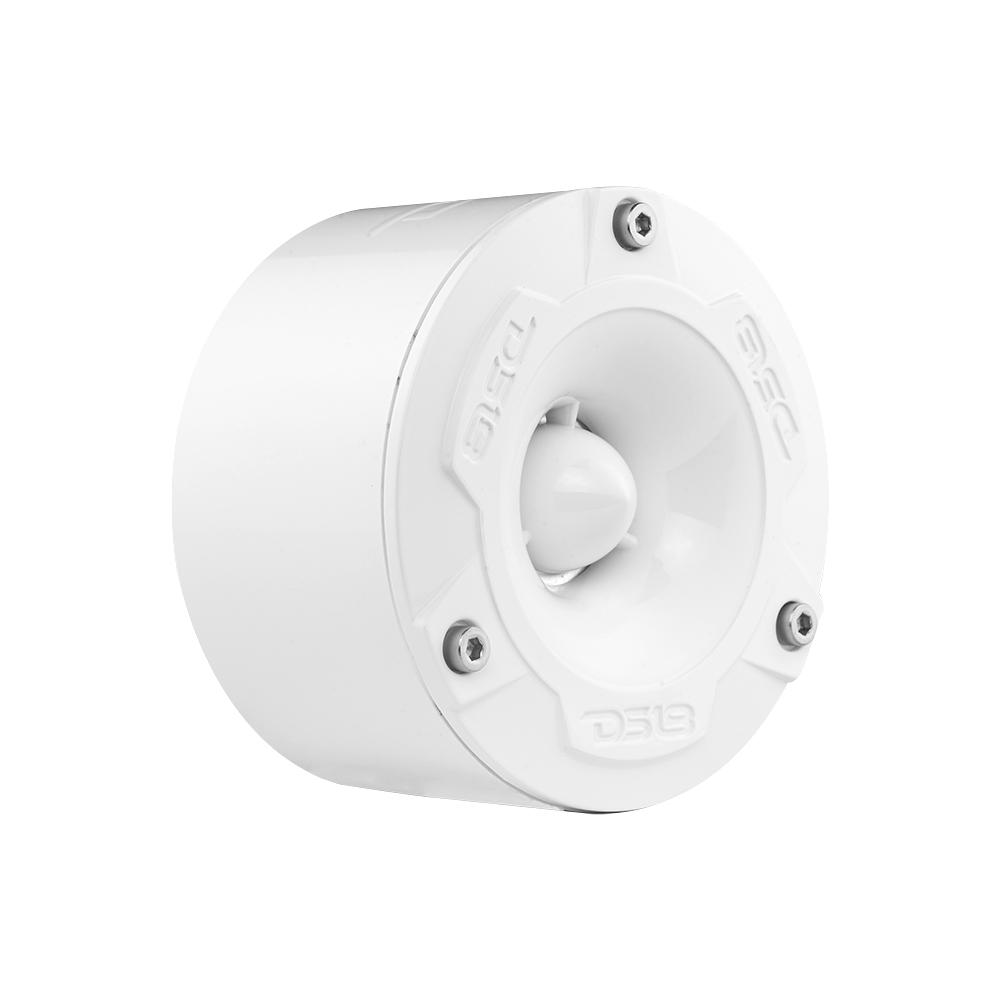

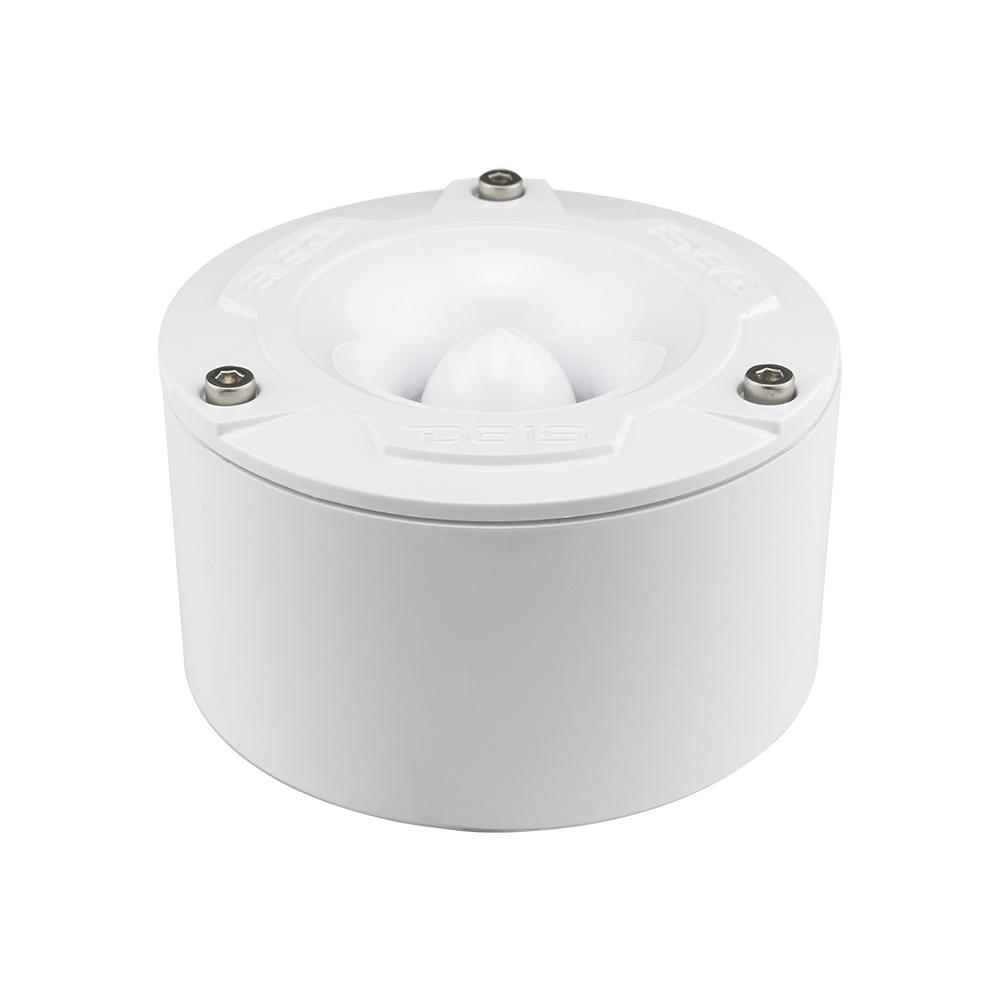

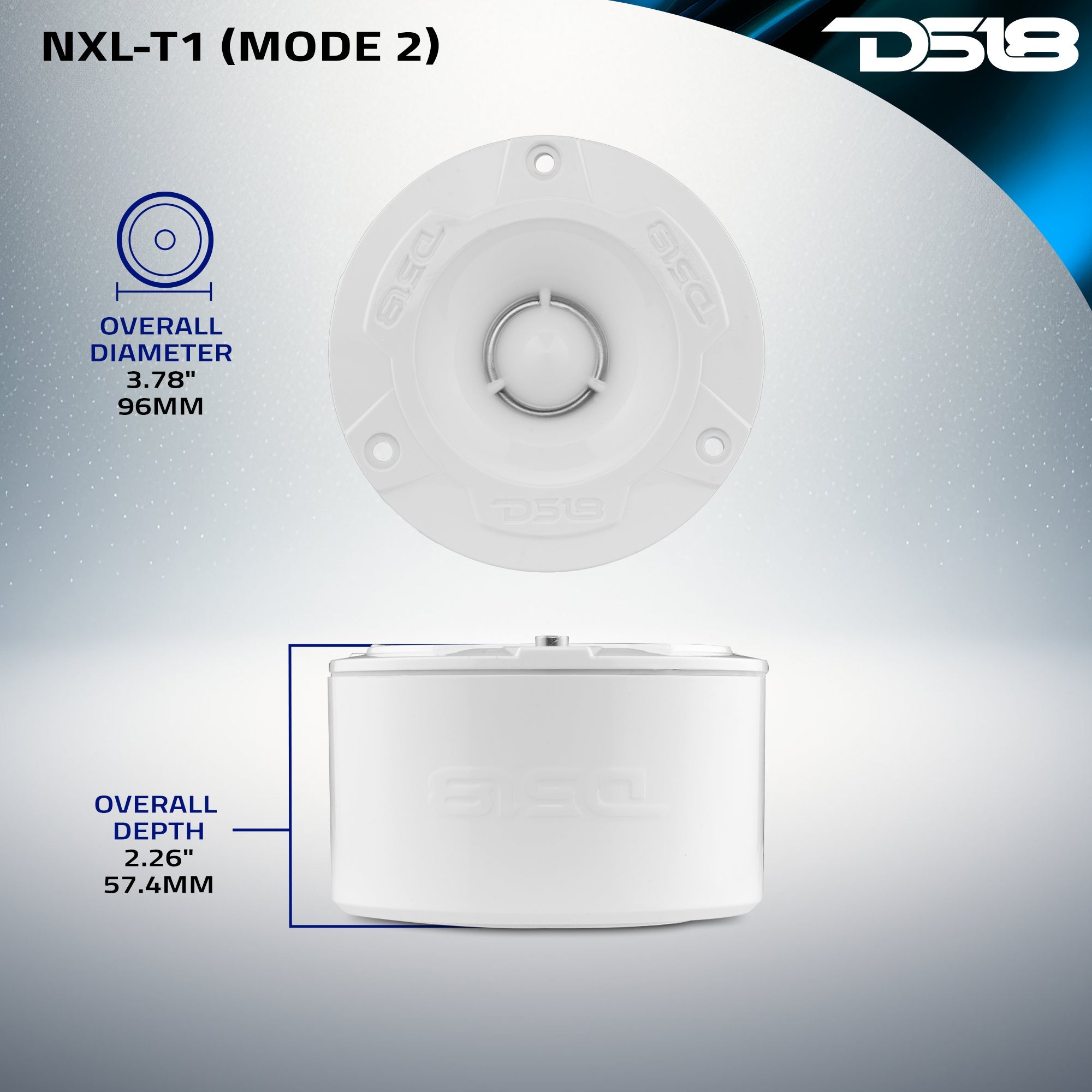

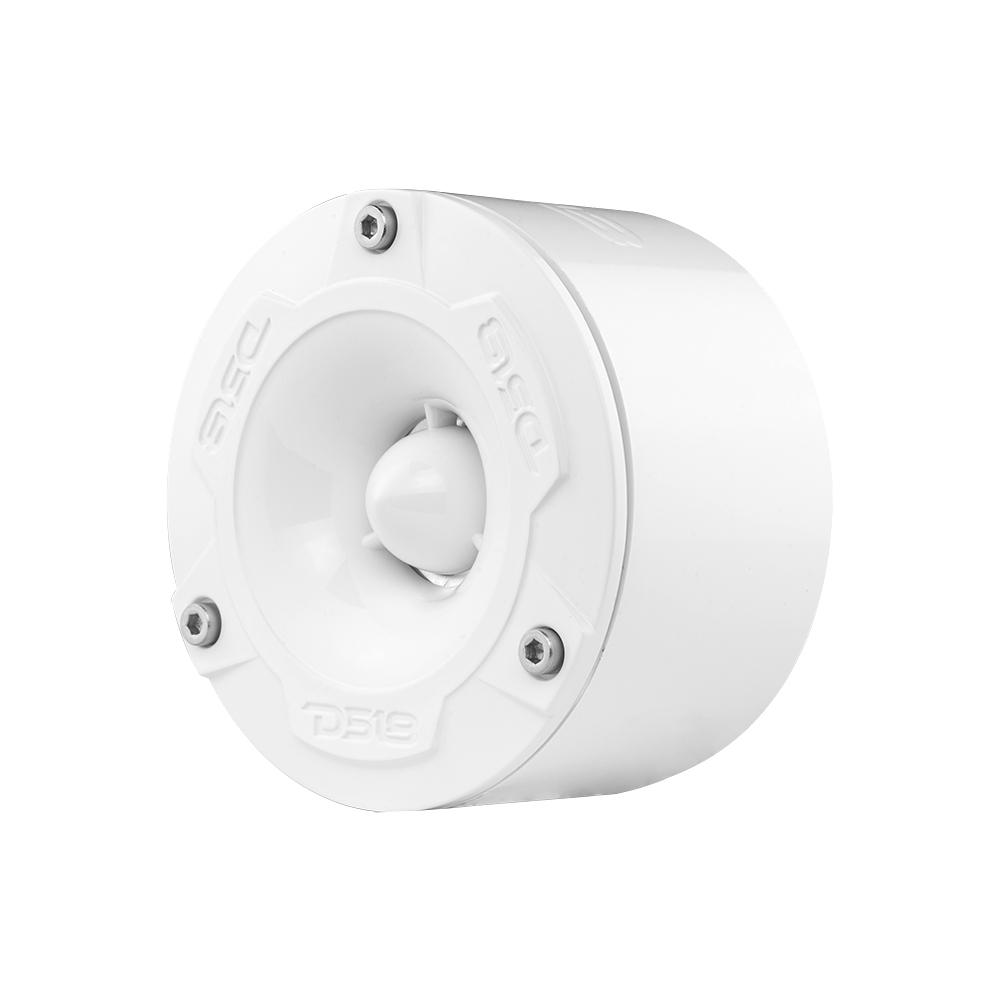

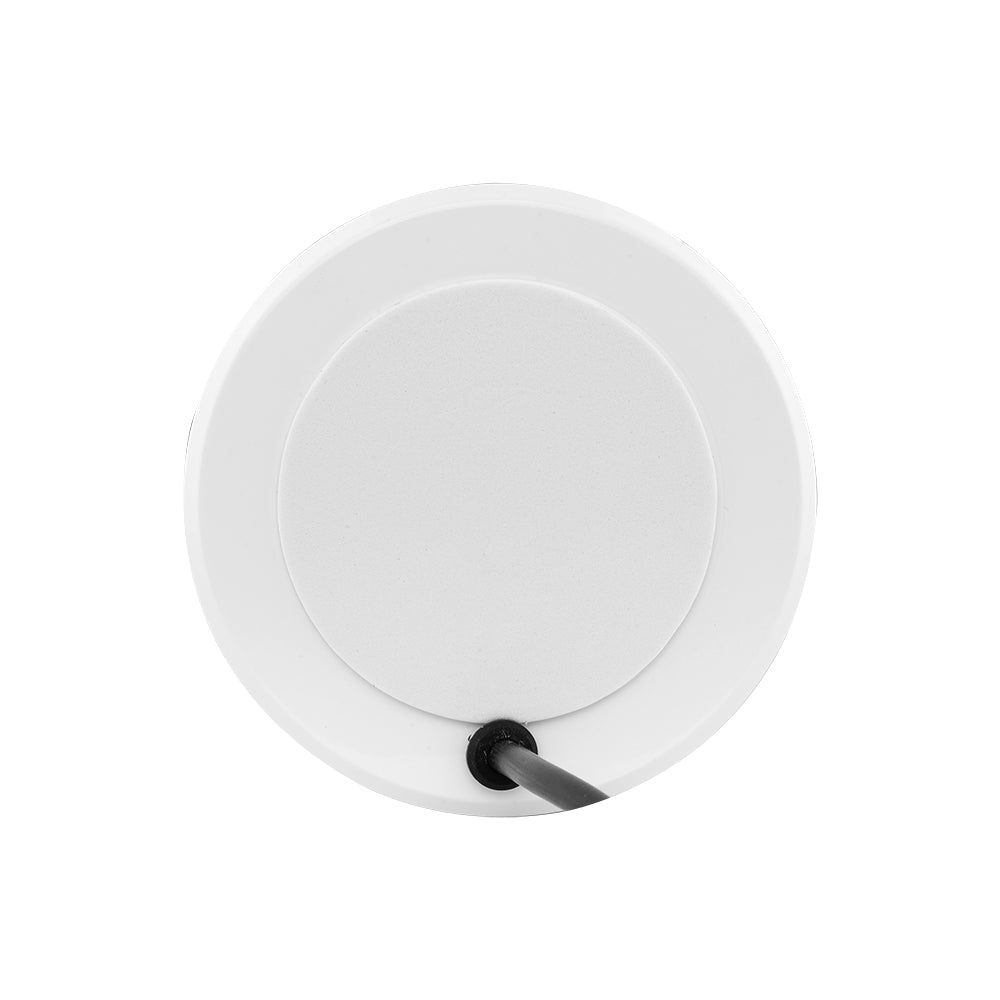

| MEASUREMENTS MODE 2 (WITH ENCLOSURE) |
|
| Overall Diameter |
3.78" / 96 mm |
| Overall Depth |
2.26" / 57.4 mm |
